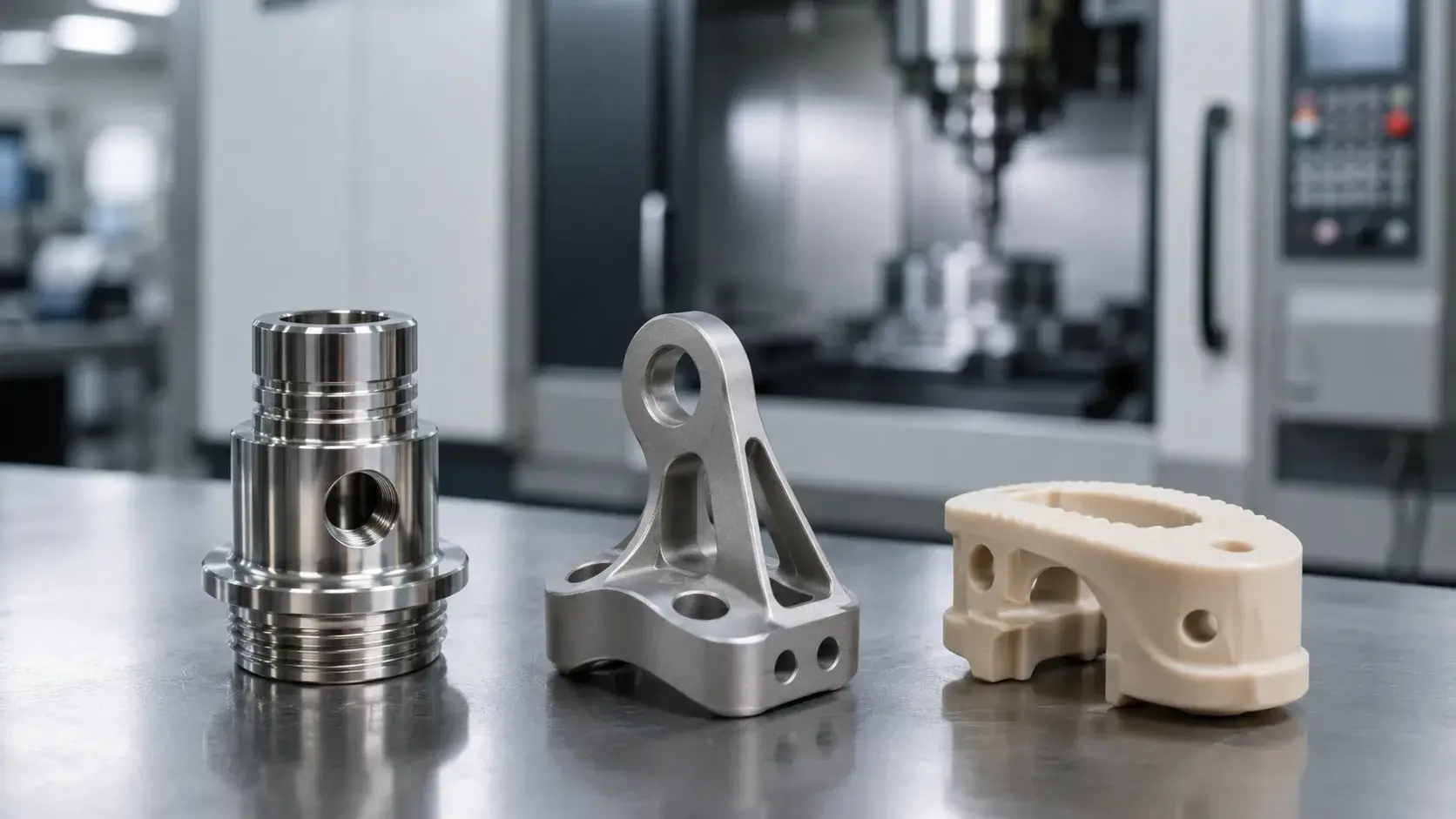

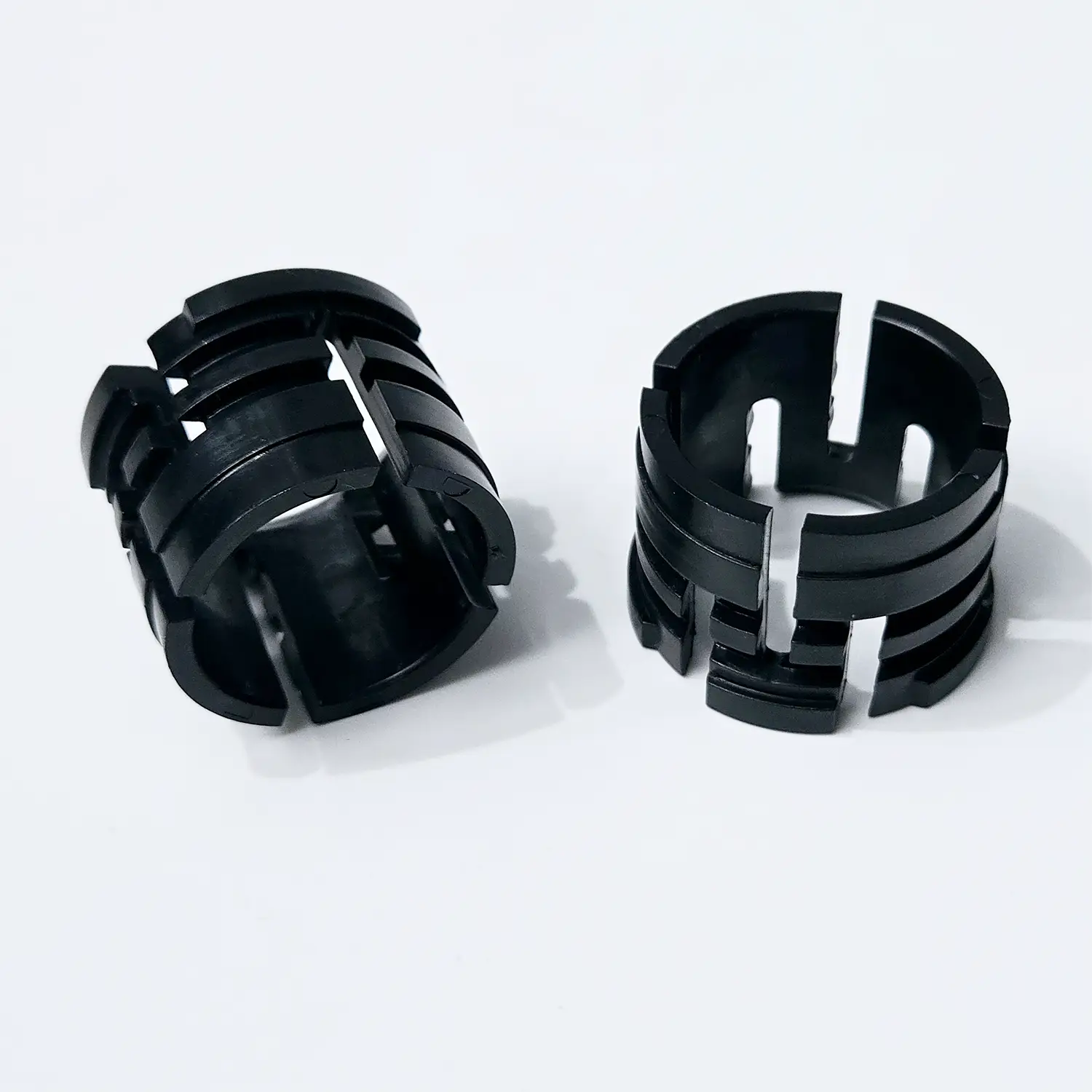

Medical Device Manufacturing with CNC Machined Plastics Biocompatible Materials: PEEK, Delrin®, and Medical-Grade Polymers In CNC machining shops, they work with some serious high performance plastics like PEEK, which stands for polyether ether ketone, along with Delrin® acetal homopolymer and various grades of medical nylon. These special materials are what manufacturers need when creating parts that actually pass those strict FDA tests for being safe inside the body. The good news is these polymers stand up well against all sorts of bodily fluids, cause fewer allergic responses compared to metals, and can handle getting sterilized over and over again without breaking down. Take PEEK for instance it has this impressive tensile strength rating around 17,000 psi, while Delrin® slides smoothly with minimal friction. That combination makes both materials perfect choices for things like artificial joints where durability matters most, plus they’re commonly found in modern drug delivery devices too. CNC Machining for Surgical Instruments and Implants The precision needed for surgical tools such as bone saws, forceps, and components of endoscopes has to be extremely tight, often better than plus or minus 0.001 inches to work properly. Computer numerical control tech makes it possible to create those intricate titanium spinal implants we see these days. These implants have special porous surfaces that actually encourage new bone growth while lowering chances of rejection from the body. Some research published last year showed pretty impressive results too. The study indicated that when doctors used orthopedic implants made through CNC machining instead of traditional casting methods, patients experienced about 22% fewer complications after surgery. Makes sense why so many hospitals are switching over to this approach now. Customization and Precision in Patient-Specific Prosthetics With CNC machining technology, doctors can create custom prosthetics based on actual 3D scans of patients’ anatomy. For cranial implants specifically, when made from this special plastic called PEEK, they reach an impressive accuracy level around 50 microns. That means these implants really match up with the shape of bones and help prevent infections that might come from spaces between implant and skull. The latest developments even let manufacturers produce polymer prosthetic sockets right there on the same day as surgery. According to research from Ponemon Institute back in 2023, about one third of amputees complain about how their prosthetics don’t fit properly. Customization through these methods actually reduces recovery periods by nearly 20% and cuts down those frustrating repeat surgeries by almost 40%. Pretty remarkable stuff when you think about it. Diagnostic and Imaging Equipment Components Role of CNC-Machined Plastics in MRI and CT Scanner Housings The plastic parts made through CNC machining play a vital role in MRI and CT scanner casings since these machines need materials that don’t conduct electricity, stay light, yet hold up over time. Materials such as PEEK and POM, which stands for polyoxymethylene, offer protection against electromagnetic interference without messing up the delicate imaging equipment inside. These polymers meet all the necessary requirements set forth by the FDA and ISO 13485 regarding how they burn and interact with biological tissues, making them safe for multiple rounds of sterilization. According to an industry report from 2023 on medical devices, manufacturers noticed about a 60% drop in flaws when using CNC machining instead of traditional injection molding methods for those complicated housing designs, particularly helpful when producing smaller batches of scanners. Meeting Tight Tolerances in Electronic Medical Devices The CNC machining process can hit those tight ±0.005 mm tolerances needed for stuff like electronic medical devices including wireless health monitors and portable ultrasound machines. Many manufacturers turn to Delrin® material for infusion pump connectors because it stays stable even when temperatures fluctuate and doesn’t break down when exposed to various fluids. A recent paper published in the Journal of Medical Device Innovation found that replacing stamped metal parts with CNC machined nylon components actually boosted signal accuracy in ECG electrodes by around 34%. Getting this kind of precision isn’t just good practice it’s essential for meeting IEC 60601-1 safety regulations. Plus, these tight tolerances allow for smaller designs which matters a lot for things like wearable glucose monitoring systems and other telemedicine equipment where space really counts. Electronic Housings and Enclosures Using CNC Machined Plastic High-Tolerance CNC Machining for Miniaturized Electronics When it comes to miniaturized electronics, the enclosures need to be super precise and structurally sound. CNC machined plastics can achieve those tight ±0.005 mm tolerances required for things like micro-sensor casings or wearable device housings, which makes them fit together nicely with PCB arrays without any issues. According to some industry data from 2023, around 92% of manufacturers have started leaning towards CNC machining for their prototypes because they can go through design changes much quicker than traditional injection molding methods allow. And there’s another benefit too the process cuts down on those annoying post-processing steps by about 40%, which really helps cut costs when producing small batches of different products at once. Material Selection for Thermal and Electrical Insulation Material choice directly affects reliability in electronic enclosures: PEEK offers UL 94 V-0 flame resistance and can operate continuously at 250°C. Polycarbonate blends provide 600 V/mm dielectric strength, suitable for high-voltage connectors. POM (Polyoxymethylene) reduces electromagnetic interference by 15 dB compared to ABS. These materials meet IEC 60601-1 requirements for medical-grade insulation, as confirmed in a 2024 material analysis. Case Study: CNC-Machined POM in PCB Connectors and Insulators A leading automotive electronics supplier achieved 99.8% connector reliability using CNC-machined POM insulators. With only a 0.5% moisture absorption rate, POM prevents short circuits in humid environments. Its 10 GPa stiffness minimizes signal distortion, and post-machining EDMR testing showed a 30% reduction in arcing incidents compared to molded nylon parts. Material Comparison: POM, PEEK, and Delrin® in Medical and Electronics Applications Machinability and Performance of POM Plastic in High-Precision Parts POM works really well when tight tolerances matter, around ±0.005 mm precision, plus it has naturally low friction properties. The material’s uniform makeup creates those smooth mirror-like finishes needed for small parts like mini connectors or tiny valves used in medical equipment. Regular plastics tend to absorb moisture and warp over time, but POM stays dimensionally stable even when exposed to humidity. This means no unwanted shape changes that would wear down gears or cause problems in moving parts. From a manufacturing standpoint, POM makes sense too. It cuts down on tool changes by about 30% compared to glass filled alternatives. And despite being easier to work with, it still packs a punch with 70 MPa tensile strength, making it suitable for structural components where durability counts. Thermal and Mechanical Strength of PEEK in Demanding Environments PEEK can handle temperatures as high as 250 degrees Celsius and stands up pretty well against harsh chemicals too, which makes it better than Delrin and POM when used in MRI parts that get sterilized all the time. The material has a flexural strength ranging from about 90 to 100 MPa, something that puts it on par with aerospace aluminum but at roughly 45 percent lighter weight. This characteristic makes PEEK especially good for making radiation resistant housing in those tiny glucose monitor implants people put inside their bodies. When researchers ran stress tests that simulated around ten years worth of wear and tear on orthopedic implants, they found that PEEK machined using CNC methods kept about 98% of its original compressive strength after all that testing. For comparison, titanium hybrids only managed to hold onto about 82%. These findings were published in Biomaterials Research back in 2023. Cost vs. Performance: Evaluating High-Performance Polymers Property POM Delrin® PEEK Cost per kg $7-10 $12-15 $200-300 Max Operating Temp 90°C 80°C 250°C Biocompatibility Limited ISO 10993 ISO 10993 CNC Cycle Time Savings 15% vs. metals 10% vs. metals 25% vs. metals PEEK might set manufacturers back around 20 times what POM would cost, but when we’re talking about spinal implants, nobody wants to cut corners. The material needs to last decades without failing, and it has to meet those strict FDA standards too. After all, if something goes wrong down there, medical professionals face some serious legal headaches, with malpractice claims typically running around $740,000 according to Ponemon’s research from last year. That’s why hospitals still go with PEEK despite the price tag. On the other hand, for things like enclosures that don’t need sterilization, Delrin® makes much more sense. It checks off the safety box with its V0 flammability rating while costing roughly 40 percent less than PEEK. Makes sense really – spend the extra bucks where lives are on the line, save money elsewhere without compromising too much on quality.

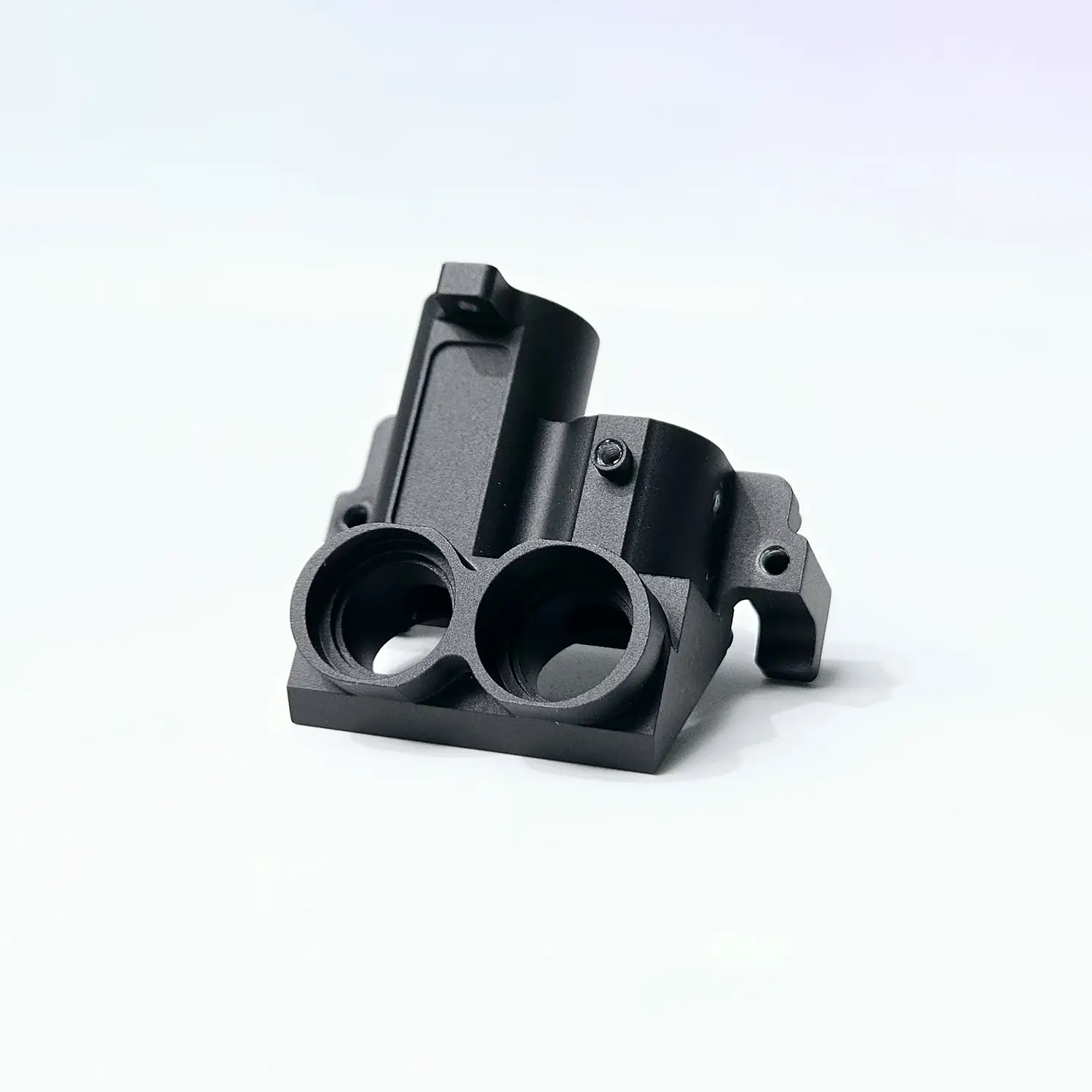

Accelerating Time-to-Market with Rapid CNC Machining Understanding Rapid CNC Machining in Modern Manufacturing Fast CNC machining takes advantage of computer controlled accuracy and smoother production processes to make complicated parts in just hours rather than taking weeks. Traditional approaches often need special tools made specifically for each job, while modern systems rely on multi axis machines that handle design modifications much quicker. Some high speed CNC setups now spin at over 60 thousand RPM, which cuts down on aluminum prototype time by about half compared to older machines according to recent industry data from Machining Trends Report 2025. These advanced capabilities have become pretty much necessary in industries like aerospace manufacturing and car production where quick turnaround times matter most. How Faster Production Cycles with CNC Machining Reduce Time-to-Market Manufacturers are cutting down on product development times significantly these days. Some reports suggest they’ve managed to shorten entire cycles by around 35%. Take one medical device firm for instance. They slashed their prototype testing phase from what used to take three whole weeks down to just three days thanks to fast CNC machining techniques. The trend is pretty widespread actually. According to IndustryWeek’s latest findings from 2024, nearly seven out of ten manufacturers see getting products to market quicker as essential for staying ahead in today’s competitive landscape. The Shift Toward High-Speed CNC Machining for Rapid Prototyping Modern prototyping relies heavily on high speed CNC machining because it can hold really tight tolerances around plus or minus 0.005 mm even when running at higher speeds. The latest CAM software has made a big difference too, as it figures out better tool paths that cut down machining time somewhere between 30% to maybe 45%, all while wasting less material overall. Take this automotive company for instance they switched their crash test prototypes from 3D printed parts to ones made via CNC machining and ended up saving hundreds of thousands each year. Not only did they save money, but the machined parts lasted longer and were just plain more accurate for what they needed. Case Study: Automotive Supplier Cuts Development Time by 40% Using Rapid CNC A Tier 1 automotive supplier reduced brake component development from 14 weeks to 8.5 weeks through: 5-axis simultaneous machining enabling complex geometries in single setups Real-time tool wear monitoring preventing quality defects Automated post-processing integrated into the CNC workflowThis approach eliminated 18 days of manual rework annually and improved dimensional accuracy by 23% over legacy methods. Automation and Efficiency in CNC Production Cycles Enable Scalability Modern CNC systems achieve 89% equipment uptime thanks to robotic pallet changers for 24/7 lights-out production, predictive maintenance algorithms that reduce unplanned downtime by 67%, and cloud-based monitoring that detects deviations in under 0.5 seconds. These capabilities allow scalable short-run manufacturing without sacrificing precision€”ideal for startups validating designs before mass production. Reducing Lead Times Through Advanced CNC Technologies and Operations Reduction in Lead Times Through Advanced CNC Technologies Multi-axis capabilities and adaptive toolpath optimization in modern CNC systems reduce lead times by 30€”50% compared to conventional methods (Frigate 2025). AI-driven controllers enable higher material removal rates while maintaining ±0.005 mm tolerances, eliminating delays caused by manual rework. Minimized Turnaround Time and Enhanced Productivity in Short-Run Production Automated tool changers and pallet shuttle systems cut non-cutting time by 65%, allowing small batches to move from CAD to finished parts in under 72 hours. One 2023 automotive case study showed optimized workflows reduced fixture setup from 8 hours to 45 minutes, increasing monthly output by 300 units. Integration of Real-Time Monitoring to Further Compress Cycle Times Technology Cycle Time Improvement Error Reduction IoT sensors 18% faster spindle adjustments 42% fewer defects Predictive analytics 22% shorter tool change intervals 37% less scrap Cloud-based dashboards Real-time RPM optimization 89% OEE improvement These systems analyze over 15,000 data points per minute, enabling micro-adjustments that prevent cycle drift during extended runs. Leveraging 24/7 Operation and Continuous Production With CNC Machines Unattended machining powered by automated material handling and tool-life monitoring achieves up to 95% machine uptime. Facilities using modular workholding report 40% faster job changeovers, supporting true lights-out manufacturing for urgent orders. Streamlining Design-to-Production Workflow with CAD-CAM Integration Use of CAM Software for Streamlined CNC Programming Modern CAM software reduces manual programming effort by up to 70%, allowing engineers to generate toolpaths directly from digital models. This automation eliminates translation errors and ensures precise, delay-free execution on the shop floor. CAD-CAM Integration for Faster Design Iterations and Error Reduction Seamless integration between CAD and CAM enables real-time updates€”design changes automatically update machining parameters. According to a recent manufacturing efficiency study, integrated workflows reduce prototype errors by 52% compared to manual transfers, enabling teams to iterate three times faster and compress development phases from weeks to days. Flexibility for Design Changes Without Tooling Delays in Rapid CNC Integrated systems support late-stage design modifications without restarting programming. When geometry updates sync instantly with CAM software, manufacturers save 8€”12 hours of setup time per revision. This agility is critical, as 83% of rapid CNC projects require at least three post-approval design adjustments. Balancing Speed and Quality: When Digital Workflows Outpace Quality Control While automation accelerates production, 34% of manufacturers report inspection bottlenecks due to unchecked design changes. Leading facilities now combine CAD-CAM integration with in-process monitoring, using sensors to verify dimensional accuracy during machining. This dual strategy maintains ISO 9001 compliance while achieving 22% faster project completion versus traditional approaches. Ensuring High Precision and Consistency in Short-Batch Production CNC Prototyping Precision and Consistency Across Repeated Runs CNC machining at high speeds can achieve really tight tolerances around plus or minus 0.005 inches thanks to closed loop feedback systems and those fancy tool path calculations. What’s interesting is how this level of accuracy stays pretty much the same whether someone needs just five parts or as many as 500. We saw this happen during some tests in the aerospace industry where nearly all titanium brackets (about 98%) passed the tough MIL-STD-1916 requirements. Manual methods just can’t match this because they don’t have built in ways to adjust when tools start wearing down over time. CNC machines actually measure themselves with lasers and make tiny corrections automatically so every part comes out looking almost identical to the last one. High Precision and Consistency Ensure Compliance in Regulated Industries The medical field and auto manufacturing depend heavily on fast CNC machining processes to satisfy those strict standards like ISO 13485 and IATF 16949. According to research published by NSF International last year, spinal implants made through CNC methods showed about 83 percent fewer surface flaws compared to traditional casting techniques. For parts subject to FDA regulations such as insulin pump casings, real time monitoring systems pick up even tiny variations down to 15 microns. These pumps need to stay completely sealed against leaks, maintaining rates under 0.001 milliliters per minute throughout their entire lifespan in the body. Case Study: Medical Device Startup Achieves ISO Certification Using Rapid CNC One surgical instrument maker managed to get their ISO 13485 certification done 14 months ahead of schedule thanks to fast CNC machining combined with built-in CMM checks. When they put automated inspection systems in place, measurement mistakes after machining dropped dramatically – around 79% fewer errors overall. They also got complete tracking for all 12 different stainless steel instruments they produce. What really made a difference was getting rid of those CMM bottlenecks. Before this change, quality docs took nearly two whole days to complete for each batch. Now it’s down to just six hours, which makes a huge difference when trying to meet tight production deadlines in medical device manufacturing. Cost-Effectiveness of Rapid CNC Machining for Small Production Runs Cost-effectiveness of CNC for small batches vs. traditional tooling Rapid CNC machining eliminates expensive molds and specialized tooling required in injection molding, reducing upfront costs by up to 85% (Manufacturing Trends 2023). Since CNC transitions between designs digitally, manufacturers can produce batches as small as 10 units without retooling delays. Production Factor Rapid CNC Machining Traditional Tooling Minimum Viable Batch Size 10€”100 units 1,000+ units Tooling Setup Cost $300€”$1,500 $8,000€”$25,000 Lead Time for Setup 2€”8 hours 4€”12 weeks Minimized setup time reduces overhead in rapid CNC operations Advanced CNC systems complete toolpath programming and fixturing in under 3 hours€”versus 1€”2 weeks for conventional methods. This efficiency frees up 20€”30% more machine time for active production, significantly lowering labor and energy costs per unit. Strategy: Balancing automation, reduced downtime, and operational costs Top manufacturers pair automated tool changers with predictive maintenance to achieve

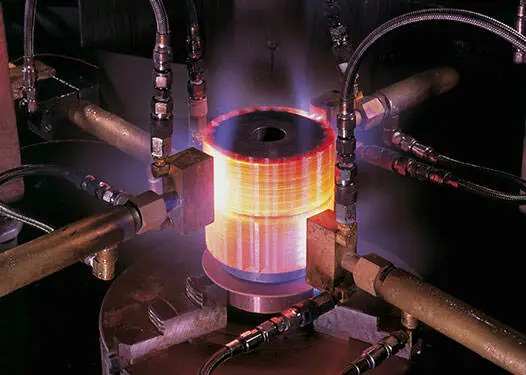

Material Selection: Ensuring Strength, Durability, and Compatibility for CNC Components Key Mechanical Properties: Strength, Hardness, and Wear Resistance How long CNC components last really comes down to what kind of materials they’re made from and their mechanical characteristics. When we talk about tensile strength, that basically means how well something holds together when force is applied. Hardness matters too because it stops surfaces from getting damaged or changed shape. And then there’s wear resistance which becomes super important for things that rub against each other constantly like gears or bearings. Many manufacturers turn to industrial quality alloys that have been specially treated with heat processes. These treatments actually make components last around 40% longer in situations where stress levels are consistently high throughout operation. Common Materials in Industrial CNC Machining (Aluminum, Steel, Titanium, Plastics) The aluminum alloy 6061-T6 gets a lot of attention because it packs serious strength into a light package and stands up pretty well against rust. When things get really harsh, stainless steels like 304 and 316 come into play since they can handle tough conditions without breaking down. Titanium takes center stage in places where temperature extremes matter most, which explains why it shows up so much in planes and medical implants thanks to how friendly it is to living tissue. For those needing something different altogether, engineering plastics have their own niche too. Take PEEK or UHMW polyethylene for instance these materials don’t conduct electricity and slide around easily, so they’re great choices when designing parts that need to avoid sparking or sticking together during operation. Matching Material to Operational Stress and Load Requirements Different applications demand distinct material behaviors. Hydraulic valve blocks require fatigue-resistant alloys, whereas semiconductor fixtures may prioritize dimensional stability. For cyclic loading, fatigue strength is paramount; for impact-prone tooling, toughness is key. A material compatibility guide emphasizes that mismatched selections can reduce operational efficiency by 25% in heavy machinery. Industry Standards and Certified Material Grades (e.g., ASTM, ISO) Compliance with standards like ASTM E8 for tensile testing and ISO 5832 for implant-grade metals ensures performance consistency and traceability. Certified grades such as 7075 aluminum in aerospace or 17-4PH stainless steel in marine settings help mitigate risks in regulated sectors including automotive and energy. Precision, Tolerances, and Dimensional Accuracy in CNC Machined Parts Why Tight Tolerances Matter in Industrial Applications Getting down to tight tolerances around ±0.0001 inch or smaller matters a lot in fields like aerospace engineering and medical device production. We’re talking about situations where tiny measurement differences at the microscopic level can actually cause complete system failures. Take jet engine turbine blades for instance they need just the right shape to work properly through all those high speed rotations. And don’t get me started on surgical tools which must have absolutely smooth surfaces so they won’t irritate tissue during procedures. When manufacturers stick to ISO 2768-f specifications, studies show something pretty impressive happens too assembly mistakes drop off dramatically about 68 percent fewer problems when compared against parts made with more relaxed tolerance requirements. Standard vs. High-Precision Tolerance Ranges and Their Impact Standard tolerances (±0.005″) suffice for general applications like enclosures or brackets. However, gears, hydraulic valves, and optical mounts require high-precision ranges (±0.0002″—±0.001″). Reducing tolerance from ±0.010″ to ±0.002″ typically increases production costs by 30—50%, due to longer machining times and enhanced inspection protocols. Metrology and Quality Control: Measuring Consistency in Production Coordinate Measuring Machines (CMMs) and laser scanners achieve micron-level accuracy, verifying compliance with ASME Y14.5 specifications. In high-volume production, statistical process control (SPC) monitors variation in real time. Top manufacturers maintain CpK values ≥1.67, a benchmark associated with 99.7% defect-free output in certified facilities. Surface Finish and Functional Coatings for Enhanced Performance of CNC Components The way surfaces are finished and coated makes a big difference in how well CNC parts work, how long they last, and what they look like overall. Getting the right finish cuts down on friction between moving pieces, slows down wear and tear over time, and meets those important visual standards when products face consumers directly. Take aerospace applications for example aluminum parts there typically get anodized to fight off corrosion problems. On the other hand, many automotive manufacturers go with electroless nickel plating for their steel components because it provides consistent protection across different surfaces. These coating choices aren’t just about looks they actually impact performance and longevity in real world conditions. Role of Surface Finish in Friction, Fatigue, and Aesthetic Requirements When surfaces are rough, they create more friction which leads to heat buildup over time. This extra heat speeds up component wear and wastes energy that could be put to better use elsewhere. For parts that spin fast or move constantly, like bearings and gears, smooth or polished surfaces make all the difference in how well they perform day after day. The tiny bumps and scratches on a surface actually become little weak spots where stress builds up. Under repeated loading conditions, these micro flaws can cut into the lifespan of materials by around 30-35%. Beyond just function, surface treatments matter for appearance too. Brushed aluminum gives equipment a professional look while powder coating comes in various colors that help manufacturers stand out visually when their machines are on display at trade shows or installed in customer facilities. Common Finishing Processes: Anodizing, Plating, Passivation, and Painting Anodizing: Forms a durable oxide layer on aluminum, increasing hardness by up to 60% without altering dimensions Hard Chrome Plating: Enhances wear resistance for hydraulic rods and press tools Passivation: Removes free iron from stainless steel to prevent rust, critical for medical and food-processing components Epoxy Painting: Protects outdoor equipment from UV exposure and moisture Selecting Finishes Based on Environmental Exposure and Wear Conditions Zinc-nickel plating works wonders in marine settings where saltwater corrosion is a constant threat. Meanwhile, many chemical processing plants rely on PTFE coatings because they hold up against harsh acids that would eat through other materials. When it comes to heavy duty stuff like mining equipment that gets battered daily, thermal sprayed tungsten carbide coatings make all the difference. These coatings typically last anywhere from double to triple what regular surfaces manage before needing replacement. Most professionals in the field look for coatings certified under ISO 12944 or passing ASTM B117 tests since these standards have become pretty much the gold standard for proving how well protective coatings actually perform over time. Environmental Resilience and Regulatory Compliance for Industrial CNC Parts Industrial CNC components must perform reliably in harsh conditions while adhering to global regulatory frameworks. Balancing environmental resilience with compliance ensures long-term functionality and minimizes legal or operational risks. Performance Under Extreme Conditions: Temperature, Corrosion, and Vibration Components in aerospace and energy sectors face temperatures above 500°C, corrosive agents, and persistent vibration. Leading manufacturers combine heat-resistant alloys like Inconel with protective ceramic coatings to combat thermal degradation. In marine applications, passivated stainless steel shows three times greater corrosion resistance than untreated variants in salt spray testing. Compliance with Global Standards (ISO 9001, RoHS, REACH) Facilities certified under ISO 9001 report defect rate reductions of 18—34%. Regulatory directives such as RoHS and REACH mandate full documentation of material composition, which is vital for electronics and medical device suppliers. Non-compliant components risk fines exceeding €50,000 under EU law and rejection from regulated supply chains. Quality Assurance Protocols in Certified Manufacturing Facilities Manufacturers who are certified typically have strict quality control measures in place. These include things like CMM inspections and running tests through spectrochemical analysis equipment. When it comes to tracking components, batch traceability is pretty much standard nowadays. Most parts can be traced all the way back to where they came from as raw materials. This kind of tracking is actually required by about 92 percent of contracts in the defense and aerospace sectors. Third party auditors come in once a year to check if companies are following the rules. But here’s something interesting: out of all machining suppliers, only around 41% manage to keep their ISO 9001 certification without any breaks for more than five years straight. Supplier Capabilities and Scalability in CNC Component Manufacturing Evaluating Technical Expertise: CAD/CAM, DFM, and Prototyping Speed For suppliers working in this field, knowing how to work with CAD/CAM software is pretty much essential if they want to get the most out of part designs and machining paths. The better ones actually incorporate DFM concepts right from the start when making prototypes, which can slash material waste somewhere around 30% while still keeping everyt

Understanding On-Demand Manufacturing: Definition and Core Principles Definition and Concept of On-Demand Manufacturing On demand manufacturing works differently from regular production methods. Instead of making products before anyone buys them, companies wait until they get actual customer orders first. This cuts down on all that extra stuff sitting around in warehouses. Traditional approaches guess at what people might want based on old data, but on demand manufacturing looks at what’s happening right now in the market. Some studies show this method can cut excess inventory by around 60 percent when compared to older ways of doing things. Plus it lets businesses make special versions of products for smaller customer groups who have unique needs. The system revolves around production schedules tied directly to what customers order, along with adaptable manufacturing setups. These setups can handle design changes pretty quickly sometimes within just two days according to tests with smart factory equipment connected through internet of things technology. How On-Demand Manufacturing Works from Order to Delivery The workflow begins when a customer order triggers automated production systems through digital platforms. IoT-enabled machinery coordinates with real-time inventory tracking, while technologies like CNC machining and 3D printing enable small-batch runs. Orders progress through four stages: Digital integration of design files and material specifications Automated quality checks via AI-powered visual inspection Just-in-time sourcing of raw materials Distributed manufacturing across geographically optimized facilities This end-to-end digital integration slashes lead times by 30-50% compared to traditional factories. Made-to-Order vs. Mass Production: Key Differences Where mass production prioritizes economies of scale through standardized outputs, on-demand manufacturing achieves profitability through: Factor Mass Production On-Demand Manufacturing Minimum Order Quantity 1,000+ units 1 unit Inventory Carrying Cost 12-25% of product value 0-3% Customization Options Limited to preset variants Full geometric/material freedom This model eliminates overproduction risks while supporting circular economy practices through localized, needs-based manufacturing. Key Benefits of On-Demand Manufacturing for B2B Enterprises Cost Reduction Through Lean Inventory and Just-in-Time Production Manufacturing on demand really cuts down those operational expenses because it gets rid of all those unsold products sitting around collecting dust. Traditional factories actually spend about $740,000 each year just dealing with this excess inventory according to Ponemon’s research back in 2023. When companies align their production schedules with actual customer orders using automated processes, they end up needing way less warehouse space too. Some businesses report cutting their storage requirements anywhere between 40% to maybe even 60%, and still manage to fulfill almost every single order that comes in. The whole point is keeping money flowing instead of locking it away in stuff nobody wants right now. Take the automotive industry for instance, those just-in-time systems have managed to slash component storage costs by roughly three quarters compared to old methods. Minimized Waste and Overproduction Risks Traditional manufacturing generates 23% material waste versus 4% in on-demand systems (Circular Economy Institute 2023). Digital twin technology enables manufacturers to: Simulate production runs before physical execution Optimize material usage to 98% efficiency Automatically adjust output volumes to match order trends This precision prevents overproduction disasters like the $2.8B retail apparel write-off crisis of 2022. Enhanced Customization and Low-Volume Production Capabilities On-demand systems enable cost-effective production runs as small as 1-50 units – a 90% cost reduction compared to traditional minimum orders. Aerospace suppliers now use this flexibility to: Produce custom drone components in 72-hour cycles Modify turbine designs between batches Test prototype iterations without retooling fees 3D-printed medical implants demonstrate how patient-specific designs achieve 60% better clinical outcomes than mass-produced alternatives. Improved Supply Chain Efficiency and Responsiveness By integrating IoT sensors with AI-driven logistics platforms, on-demand manufacturers reduce lead times from 12 weeks to 72 hours. Real-time data flows allow: Metric Traditional On-Demand Improvement Order-to-ship time 34 days 6 days 82% faster Supplier response rate 48 hours 2 hours 96% quicker This agility proved critical during 2023’s semiconductor shortage, where on-demand electronics producers maintained 94% delivery reliability versus 58% in conventional factories. On-Demand vs. Traditional Manufacturing: A Strategic Comparison Core differences in production models and business impact Traditional manufacturing relies on forecast-driven mass production, requiring large upfront investments in raw materials and warehouse space. On-demand manufacturing operates through just-in-time production, initiating workflows only after receiving confirmed orders. This fundamental operational difference creates divergent business impacts across three key areas: Production Dimension Traditional Manufacturing On-Demand Manufacturing Inventory Commitment 6-12 months of projected demand 0-30 days of active orders Customization Flexibility Limited by batch size constraints Enabled through digital prototyping Working Capital Allocation 45-60% tied to inventory (Ponemon 2023) Under 15% allocated to storage As detailed in the 2023 State of Manufacturing Report, companies using on-demand models reduce time-to-market by 37% compared to traditional counterparts. This agility stems from eliminating production forecasting errors that cost manufacturers $740 billion annually in overproduction waste. Inventory, warehousing, and scalability challenges in traditional manufacturing Conventional systems require maintaining 40-65% of facility space for inventory storage, creating fixed costs that limit operational flexibility. The average manufacturer spends 22% of product costs on warehousing expenses alone, compared to 6% in on-demand models. Scalability becomes particularly problematic – increasing output requires proportional warehouse expansion rather than process optimization. Why overproduction remains a critical issue in conventional systems Forecast-driven production creates a 28% average surplus across manufacturing sectors (Ponemon 2023), with 65% of excess inventory eventually discounted or discarded. Traditional manufacturers lose 9-14% of annual revenue to storage costs and product obsolescence, systemic issues avoided in demand-aligned production models. Technologies Powering the On-Demand Manufacturing Revolution Core Production Technologies: 3D Printing, CNC Machining, and Injection Molding The world of on demand manufacturing is built around three key technologies these days. Take 3D printing, also known as additive manufacturing, which lets companies create prototypes quickly and produce intricate shapes without spending money on expensive tools. Lead times can drop anywhere from 40 to 60 percent compared to older methods according to NetSuite’s 2023 report. Then there’s CNC machining that gives manufacturers incredible accuracy when working with metals and plastics, often down to less than 0.001 inch tolerance. This level of precision makes it indispensable for making parts used in airplanes and medical equipment. Injection molding handles large batches of plastic products efficiently, and newer techniques like rapid tooling have made it possible to run smaller batches economically, somewhere between 500 and 1,000 units typically. Together, these three approaches create a versatile toolkit capable of manufacturing everything from custom car components all the way to specialized surgical implants. Digital Twins, IoT, and AI in Smart On-Demand Production The latest Industry 4.0 tech is basically taking all the guesswork out of how things get made on factory floors these days. Take digital twins for instance. These virtual models can run through whole manufacturing operations before anyone even turns on the machines, spotting possible slowdowns with pretty impressive 92% accuracy according to Deloitte’s findings from last year. Then there are those IoT sensors everywhere now monitoring when machinery starts acting funny. They predict when parts need replacing so manufacturers don’t end up losing hundreds of thousands per hour just because something breaks down unexpectedly in auto plants. And let’s not forget about AI doing its thing too. Smart algorithms figure out exactly how much material should go where while automatically checking throughout production. McKinsey did some research showing that factories running on AI cut down defects by around 35% and manage to save about 18% on their energy bills at the same time. Integration of Digital Platforms and Automation in On-Demand Workflows Cloud-based platforms like Xometry’s Instant Quoting Engine connect manufacturers with global clients through automated CAD analysis and pricing tools. These systems slash quoting times from days to minutes while enabling: Real-time collaboration between designers and production teams Automated order routing to underutilized facilities Blockchain-tracked material sourcing When combined with robotic assembly lines, these digital layers enable <10-day turnarounds for custom industrial components – a 70% improvement over conventional methods. Applications, Scalability, and Sustainability of On-Demand Models Industry use cases: Aerospace, automotive, and healthcare The benefits of on demand manufacturing are becoming really apparent in industries where precision matters most. Take aerospace companies for instan

How the Vacuum Casting Process Works What is vacuum casting and how does it work? Vacuum casting makes precise plastic and rubber components by utilizing silicone molds within a vacuum setup. To begin, manufacturers typically create either a 3D printed or CNC machined prototype, then submerge this into liquid silicone to form a flexible mold. Once the silicone has cured properly, they position the mold inside a vacuum chamber and inject polyurethane resin while applying negative pressure. This technique effectively removes trapped air bubbles from the mix, resulting in parts with accurate dimensions and smooth surfaces that rival those produced through injection molding techniques commonly used in mass production settings. Step-by-step guide: From master pattern to final cast part Master Pattern Creation: A prototype model is made via 3D printing or CNC machining Silicone Mold Preparation: The pattern is suspended in a frame, covered with liquid silicone, and cured at 40°C (104°F) for 16 hours Mold Separation: The cured mold is carefully cut open to remove the master pattern while preserving cavity details Resin Casting: Two-part polyurethane is mixed, degassed, and poured into the mold under 0.1 bar vacuum pressure Curing & Demolding: Parts cure for 2–4 hours before being manually removed A 2023 process study found optimized workflows reduce lead times by 35% compared to traditional tooling methods. The role of negative pressure in reducing porosity and enhancing surface quality Operating under vacuum (≤1 mbar residual pressure) collapses gas bubbles during resin injection, resulting in less than 0.5% porosity. This pressure differential forces material into fine mold textures, consistently replicating features below 20 µm. Automotive manufacturers report up to 90% fewer surface defects compared to open-air casting techniques. Silicone mold fabrication and expected lifecycle High-temperature vulcanizing (HTV) silicone molds typically last 25–50 cycles while maintaining ±0.15 mm tolerances. Platinum-cure silicones can extend mold life to over 80 casts when used with low-shrinkage resins such as ABS-like polyurethanes. Proper storage at 22°C and 30% humidity prevents premature hardening, allowing molds to remain usable for 6–8 weeks between production runs. Design Principles for Optimal Vacuum Casting Results Key Design Guidelines: Wall Thickness, Ribs, Bosses, and Uniformity Maintain uniform wall thickness between 2–4 mm to prevent warping and ensure even curing. Ribs and bosses should follow a 1:3 height-to-thickness ratio to avoid stress concentrations. Research from 2023 shows that uniformly walled designs have 62% fewer defects than inconsistent ones. Handling Undercuts, Embossed Features, and Mold Release Considerations Apply draft angles of 1–3° for embossed logos to ease demolding Isolate complex undercuts using modular mold inserts Use silicone-compatible release agents to protect mold integrity and support more than 30 cycles Compensating for Material Shrinkage and Curing Behavior Polyurethane resins shrink 5–8% during curing. To counteract this, designers scale master patterns by 1.05–1.08x. Strategic sprue placement and post-curing at 60°C for 4–6 hours stabilize dimensions within ±0.15 mm. Achieving Tight Tolerances and High Surface Finish Quality Vacuum casting achieves ±0.1 mm tolerances on features under 50 mm and replicates surface textures finer than 20 µm. Optimized venting reduces polishing time by 40%, maintaining Ra values between 0.8–1.6 µm, according to the 2024 Design Efficiency Report. Common Defects and How to Prevent Porosity, Warping, and Incomplete Fills Porosity drops significantly—from 12% to 2%—when dual vacuum cycles (30³ Hg at 0.8 bar) are applied. To minimize warping: Maintain mold temperature at 40±5°C Use glass-filled resins for thin sections Employ sequential pouring for parts exceeding 200 mm Incomplete fills are avoided through proper venting and controlled resin flow. Materials and Applications in Vacuum Casting Polyurethane Resins and Material Options for Diverse Properties The vacuum casting process mainly relies on polyurethane resins that have been specially developed to act as substitutes for common engineering thermoplastics such as ABS, polypropylene, and polycarbonate materials. What makes these resins particularly useful is their ability to adjust hardness levels typically ranging between 60 to 75 Shore D for the harder types. They also come with built-in flame resistance meeting UL94-V0 standards and maintain consistent colors throughout production runs, which explains why they work so well for both prototype testing and actual product components. For applications needing something softer, there are versions that behave similarly to rubber materials used in seal manufacturing. When strength matters most, manufacturers turn to glass filled options that closely match traditional structural plastics. A recent look at material compatibility data from early 2023 shows that about eight out of ten automotive parts produced through vacuum casting techniques utilize these versatile polyurethanes because they strike just the right balance between lasting performance and capturing fine details during the molding process. Flexible, Clear, and High-Temperature Resistant Resins for Specialized Needs Resin Type Key Characteristics Common Applications Flexible (Shore A 40-90) Tear-resistant, vibration-damping Gaskets, ergonomic handles Optical Clear >92% light transmission Lens prototypes, light guides High-Temp (150°C+) Minimal thermal deformation Engine bay components, HVAC These specialty materials allow production of medical-grade seals and transparent consumer electronics housings without secondary finishing. Matching Material Characteristics to End-Use Application Requirements Automotive engineers select heat-resistant resins for under-hood sensors, while electronics manufacturers prefer UL-certified flame-retardant grades for charger enclosures. Industrial equipment prototypes often use glass-filled urethanes to emulate injection-molded nylon’s stiffness at one-third the cost. Medical Device Development with Biocompatible Cast Materials Vacuum casting supports ISO 10993-certified urethanes for surgical instruments and prosthetics. A 2022 study found that 78% of custom orthopedic guides are produced via vacuum casting due to its ability to maintain ±0.15 mm accuracy in biocompatible materials. Aerospace and Functional Testing Applications for Small-Batch Components The aerospace industry uses vacuum casting for wind tunnel models and drone housings requiring tight tolerances (±0.1 mm). Recent advancements in high-impact resins enable over 50 flight-worthy parts per mold, reducing qualification timelines by 40% compared to CNC machining. Benefits of Vacuum Casting for Prototyping and Low-Volume Production Fast Turnaround and Cost Advantages Over Injection Molding Vacuum casting delivers functional prototypes in 5–10 business days, cutting lead times by 75% compared to injection molding tooling cycles. The simplified silicone mold process avoids expensive metal tool modifications. For batches under 500 units, per-part costs are reduced by 30–60%, making it ideal for iterative design validation. Low Tooling Investment and Scalability for Small Production Runs Silicone molds cost $800–$2,500 upfront—significantly less than $15,000+ for steel injection molds. Each mold typically produces 15–25 identical parts economically. Output can be scaled by producing multiple molds in parallel, maintaining consistency across runs—a key advantage for medical startups producing 50–300-unit batches before regulatory approval. High-Detail Replication of Complex Geometries and Surface Textures With tolerances of ±0.15 mm and surface roughness below 1.6 µm Ra, vacuum casting matches injection molding quality for intricate features such as: Micro-textured grips (0.1–0.5 mm patterns) Snap-fit interfaces with <0.2 mm clearance Optical-grade transparent lenses (92% light transmission) Sustainability Benefits Through Reduced Waste in Low-Volume Manufacturing Compared to CNC machining, vacuum casting generates 68% less waste for complex geometries, and reusable molds reduce scrap. Modern polyurethane resins contain 25–40% bio-based content while maintaining tensile strength above 50 MPa—meeting growing demand for eco-compliant pre-production samples in automotive sectors. Vacuum Casting vs. Other Manufacturing Methods: When to Choose Which Vacuum Casting vs. Injection Molding: Cost, Volume, and Lead Time Comparison When it comes to getting started, vacuum casting is way cheaper upfront compared to injection molding. Think around $800 to $2,500 for each mold versus the $15k to $50k price tag on injection molds. Plus, vacuum casting setups take just 7 to 14 days instead of the 6 to 12 weeks needed for injection molding tools. For smaller runs under 500 units, vacuum casting can actually save manufacturers between 60% and 80% on each part. But there’s a catch. Once production goes past about 10,000 pieces, injection molding starts making more financial sense with unit costs falling below $2 apiece. According to some industry reports from last year, vacuum casting remains king for prototypes and short term production needs, while big manufacturers still rely heavily on injection molding for their massive output requirements. Comparing Vacuum Casting with 3D Printing and CNC Machining for Prototypes While 3D printing delivers concept models in 24–72 hours, it lacks functional material performance and fine surface finish. CNC machining achieves superior precision (±0.025 mm) for metal parts but becomes costly with complexity. Vacuum casting bridges these gaps by offering: Material versatility: Over 80 polyurethane resins replicating ABS, PP, and high-temp thermoplastics Detail fidelity: 25 µm resolution exceeding most FDM/SLA prints Batch efficiency: Production of 10–15 parts per cycle

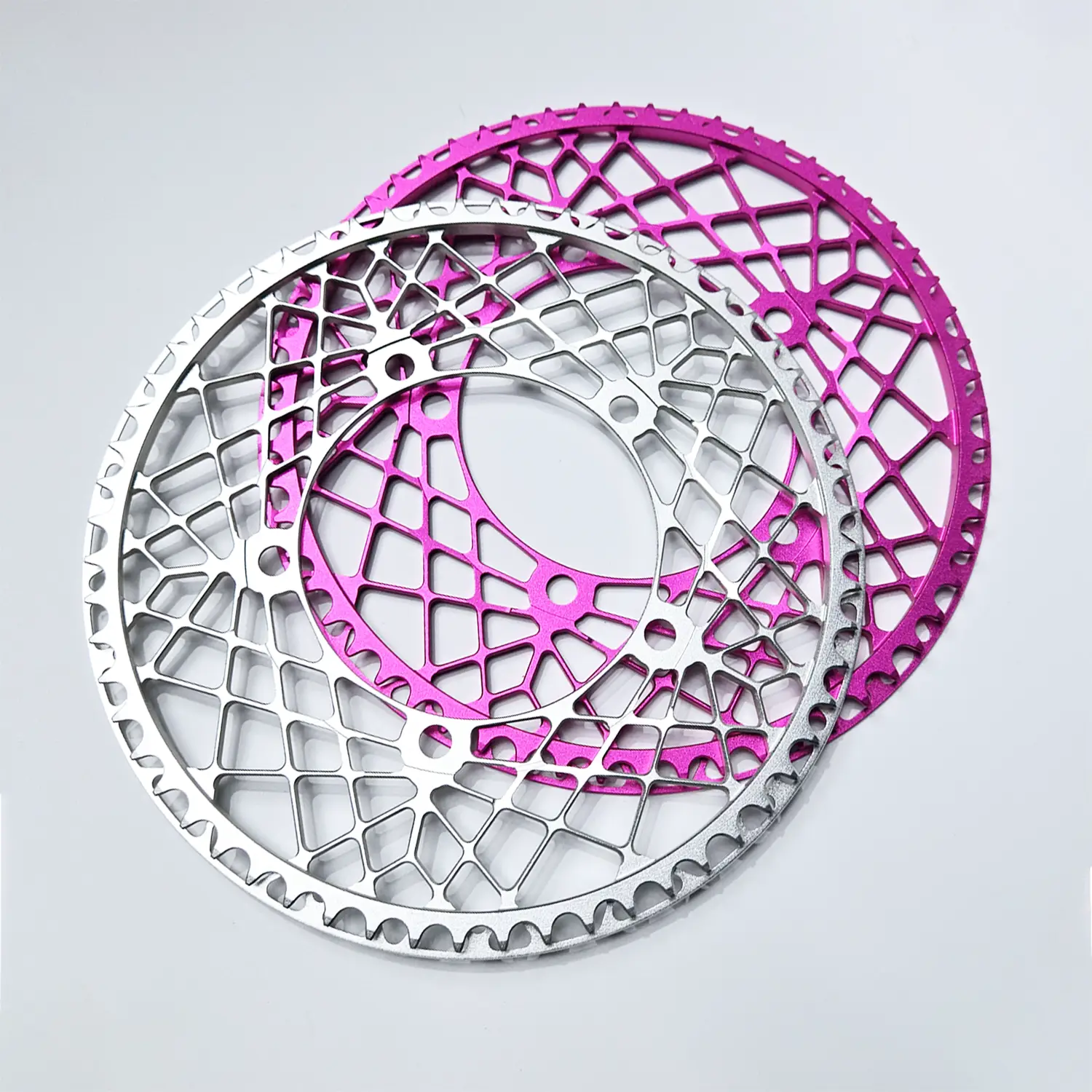

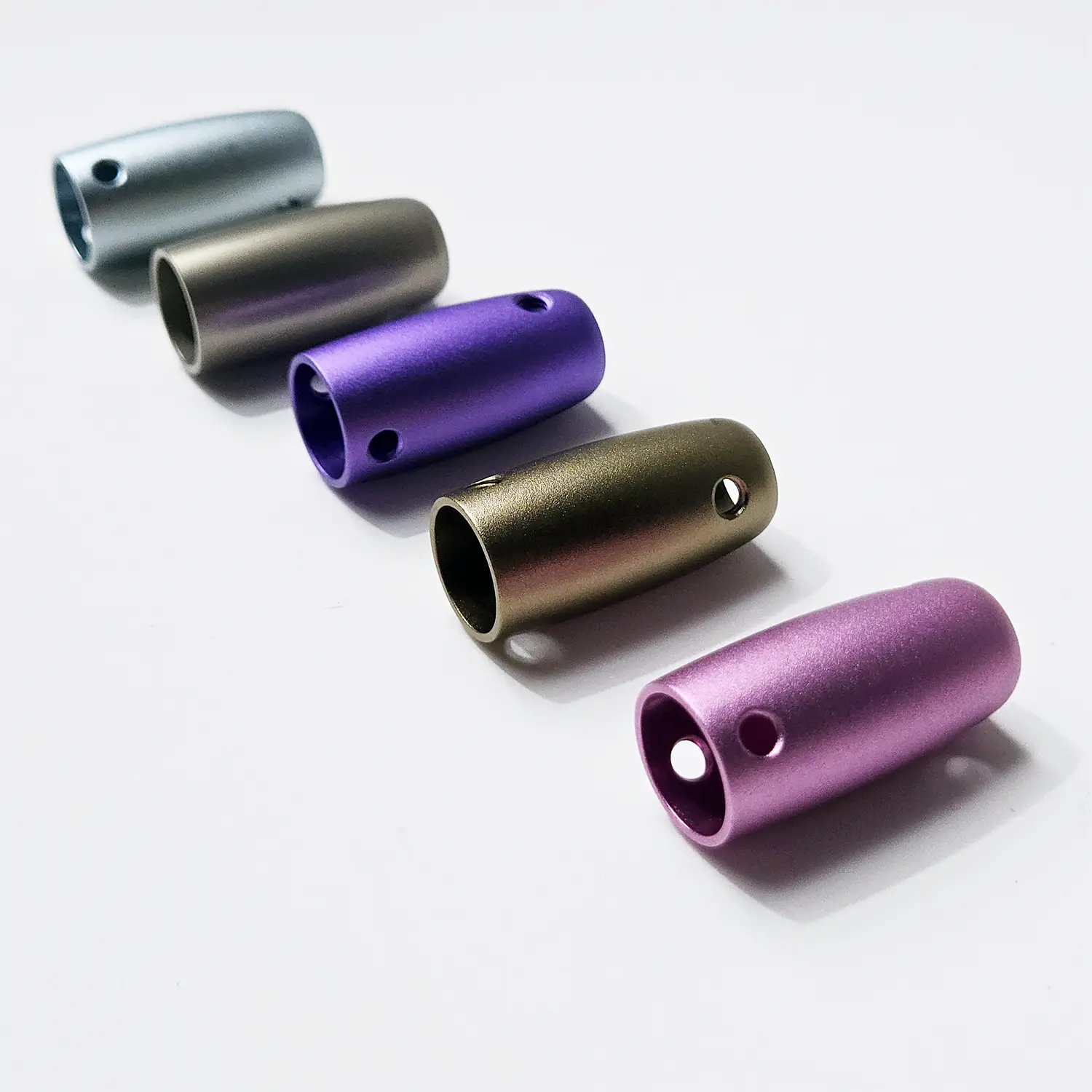

How Anodizing Works: The Electrochemical Science and Process Steps Understanding the Electrochemical Process Behind Anodizing The process of anodizing creates a tough aluminum oxide layer (Al₂O₃) right on top of aluminum surfaces through electrolysis. Basically, during this electrochemical treatment, the aluminum component becomes the positive electrode or anode inside a container holding an acidic solution, usually either sulfuric or chromic acid. As electricity passes through, oxygen ions from the acid start bonding with aluminum atoms at the metal’s surface. What happens next is pretty cool – these bonds create an oxide layer that actually grows both outwards and downwards into the material itself. The 2024 Surface Engineering Report found something interesting too: this treated surface ends up being around 15 to 25 percent harder compared to regular untreated aluminum, yet still keeps enough flexibility so it works well in all sorts of industrial applications where durability matters most. Step-by-Step Anodizing Process: Cleaning, Etching, Anodizing, and Sealing Cleaning: Removes oils, grease, and contaminants via alkaline or solvent-based treatments to ensure uniform processing. Etching: Immersion in a heated alkaline solution (60–70°C) produces a consistent matte finish by removing 5–10 microns of surface material. Anodizing: The part is submerged in a 15–20% sulfuric acid bath at around 20°C, with 12–18 volts applied for 30–60 minutes, initiating oxide layer growth. Sealing: A hydrothermal treatment at 90–100°C closes pores in the oxide structure, boosting corrosion resistance by up to 300% compared to unsealed surfaces (2023 Materials Protection Study). Role of Electrolytes, Voltage, and Temperature in Controlling Oxide Layer Growth Parameter Effect on Oxide Layer Typical Range Electrolyte Type Determines coating density & porosity Sulfuric (Type II/III), Chromic (Type I) Voltage Controls layer thickness 12V (decorative) – 120V (hardcoat) Temperature Influences growth rate & hardness 0°C (hardcoat) – 20°C (standard) Optimizing these parameters reduces defects by 40–60% in critical aerospace components, according to recent industry analyses. Why Aluminum Is Ideal for Anodizing: Natural Oxide Layer and Alloy Compatibility Aluminum creates a natural protective oxide layer around 2 to 5 nanometers thick, serving as a base for consistent electrochemical oxidation processes. Some common alloys like 6061 and 7075 actually form oxide coatings that are anywhere from half again to twice as thick compared to other metal types when exposed to similar conditions. Recent studies published in 2023 showed that aluminum-silicon combinations stick better to surfaces by about 30 percent because their internal metal structures distribute more evenly during processing. This makes these particular alloys especially good choices for parts used in aircraft where materials need to withstand extreme stress without failing. Types of Anodizing: Type I, Type II, Type III, and Specialized Methods Type I (Chromic acid anodizing): Corrosion resistance with environmental considerations Type I coating relies on chromic acid to create very thin layers measuring around 0.00002 to 0.0001 inches thick. These are commonly used on parts like aerospace fasteners and welded components where even the slightest dimensional changes matter a lot during manufacturing. The process works well against corrosion but comes with a major downside: it produces hexavalent chromium, which regulatory bodies like OSHA and the EPA have classified as dangerous waste material that needs special handling. Another limitation worth noting is the narrow spectrum of colors available from this type of coating, typically ranging from light gray to deep gray tones. Plus, since it doesn’t hold up well against abrasion, most manufacturers avoid using Type I coatings when appearance matters or when parts will face heavy wear over time. Type II (Sulfuric acid anodizing): Versatile, dyeable finish for commercial use The process forms those tiny holes in metal surfaces measuring between 0.0001 and 0.001 inches thick when submerged in sulfuric acid solutions. These pores let dyes soak into the material after treatment, which is why we see so many colorful finishes on things like smartphones, decorative building elements, and kitchen gadgets. Industry stats from last year show that about four out of five Type II treatments focus mainly on looks while still holding up reasonably well over time. Not as tough against wear and tear compared to the harder coatings available, but what this method lacks in toughness it makes up for in affordability and versatility for different design needs across various industries. Type III (Hardcoat anodizing): Extreme durability for industrial and aerospace applications Type III anodizing creates really thick oxide layers ranging from about 0.0005 inches to 0.006 inches. The process works at very cold temperatures, sometimes right around freezing point, and requires higher voltage levels in sulfuric acid baths. What makes these coatings special is their ability to stand up against abrasion much better than standard Type II coatings actually they resist about 60 percent more wear. That’s why manufacturers rely on them so heavily for components like hydraulic pistons where durability matters, parts of firearms that need protection, and even housing units for satellites exposed to harsh conditions. Another key feature worth mentioning is the impressive dielectric strength of around 1000 volts per millimeter. This property ensures good electrical insulation when working with high voltage systems, which helps prevent dangerous arcing problems in sensitive precision equipment across various industries. Phosphoric acid and other specialized anodizing techniques for niche uses Phosphoric acid anodizing yields ultra-thin, highly adhesive coatings (<0.0001″), primarily serving as a pretreatment for bonding surfaces in aircraft structures. Emerging technologies like plasma electrolytic oxidation (PEO) create ceramic-like oxides on magnesium alloys, enabling biodegradable orthopedic implants and lightweight aerospace components. Type Thickness Range Color Options Primary Applications Type I (Chromic) 0.00002″–0.0001″ Gray/Dark Gray Aerospace fasteners, welds Type II (Sulfuric) 0.0001″–0.001″ Full spectrum via dyeing Consumer electronics, trim Type III (Hardcoat) 0.0005″–0.006″ Gray/Black Hydraulic systems, firearms Phosphoric Acid <0.0001″ Clear (primarily pretreatment) Aircraft bonding surfaces Data sourced from anodizing process comparisons Clear vs. dyed anodized finishes: Balancing aesthetics and performance Clear anodizing keeps the natural shine of aluminum intact while still reflecting light really well even after sitting outside for ten whole years. The numbers back this up too something like 9 out of 10 reflectivity remains intact. When it comes to colored finishes though, there are plenty of design choices available but they need good sealing work if the colors are going to last. Look at Type II surfaces as an example sealed ones hold onto their color much better about 85% of original intensity after fifteen years versus only around 70% when left unsealed. For those tough industrial jobs where reliability matters most, many professionals go with Type III’s natural dark gray look instead. This helps sidestep any issues that might come from colored dyes breaking down under stress or extreme conditions which can happen sometimes in harsh environments. Key Benefits of Anodizing: Durability, Protection, and Sustainability Superior Corrosion Resistance in Harsh Environments When tested in salt spray environments, anodized aluminum lasts about five times longer before showing signs of corrosion compared to regular untreated metal according to recent material durability studies from 2023. What makes this possible is the formation of an oxide layer that acts as protection against harsh marine environments, factory emissions, and acid rain. Regular coatings like paint tend to peel off over time, but the anodizing process creates something different. This protective layer actually becomes part of the metal itself through chemical bonding. So even if the surface gets scratched, it keeps working to prevent rust underneath those scratches. UV Stability and Long-Term Color Retention of Dyed Anodized Surfaces Anodized finishes that have been dyed can hold onto around 95% of their initial color intensity even after standing up to 20 years of sun exposure. That’s about 15 times better than what we see with powder coating options. The reason? The dye actually sits inside those tiny sealed pores in the oxide layer, so it doesn’t fade away as quickly. For this reason, many architects and engineers turn to anodized aluminum when designing buildings or installing solar panels where they know the material will face constant sunlight day after day. Electrical Insulation and Non-Conductive Properties of Anodized Layers The aluminum oxide layer provides strong electrical insulation with a dielectric strength of 800–1,000 V/µm. This property supports reliable performance in: Heat sinks for consumer electronics Robotic frames requiring static dissipation Enclosures for substation and power transmission equipment Its non-conductive nature prevents short circuits in densely packed assemblies while maintaining thermal conductivity through the base metal. Eco-Friendly Aspects: Recyclability, Low Emissions, and Sustainable Finishing Anodizing emits 85% fewer volatile organic compounds (VOCs) than liquid painting processes. It supports sustainable manufacturing because: Spent electrolytes are neutralized into inert salts Anodized aluminum remains fully recyclable without stripping Energy use is 40% lower than chrome plating (2024 Sustainable Manufacturing Review) These advan

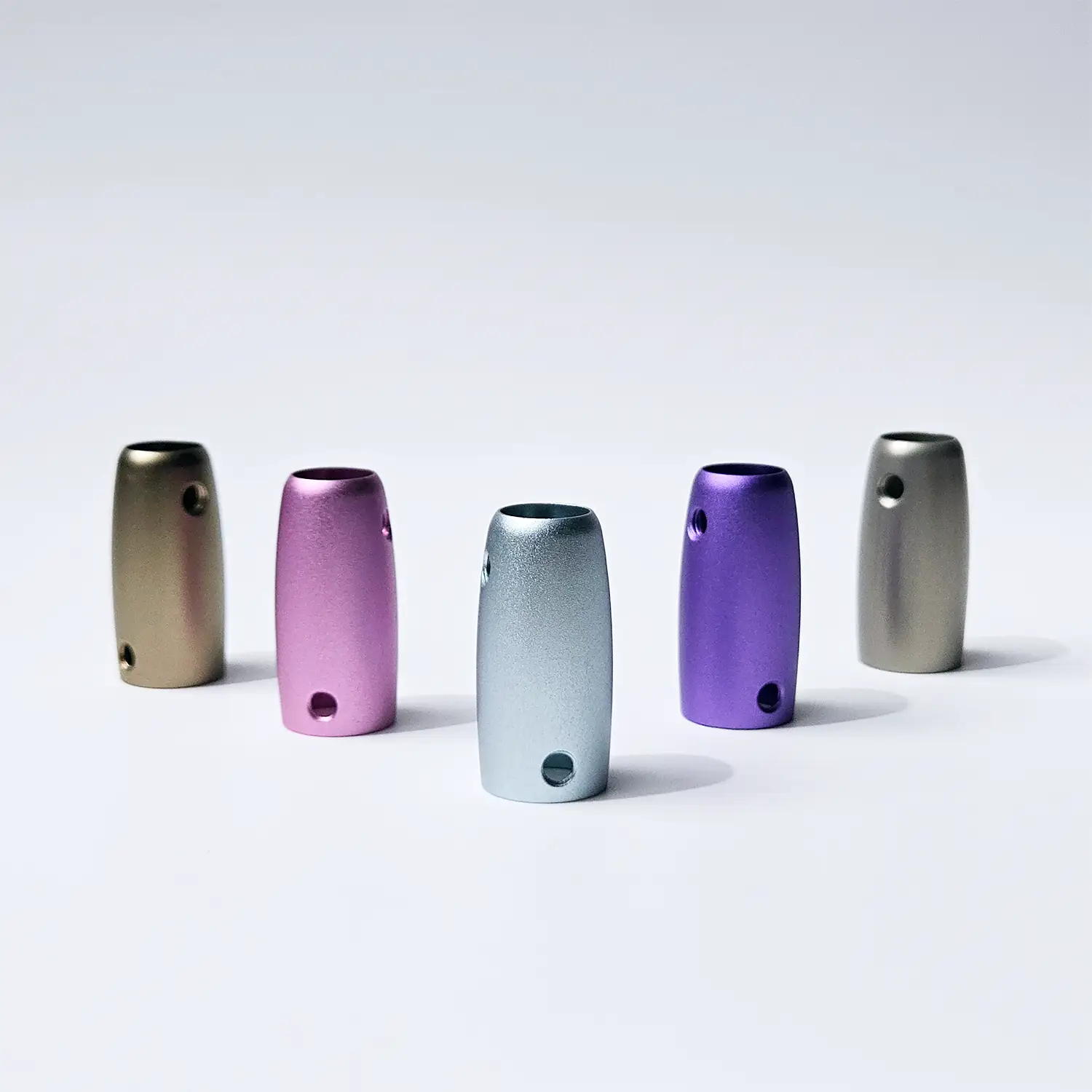

Fundamental Principles of Anodizing, Powder Coating, and Metal Plating How Anodizing Transforms Aluminum Through Electrochemical Oxidation Anodizing changes aluminum through a process called electrochemical oxidation. Basically, the metal gets submerged into an acidic electrolyte solution and then electricity is applied which causes a porous layer of aluminum oxide (Al2O3) to form right on the surface of the material itself. What makes this process special is how strong the resulting bond actually is. Studies show it creates a connection about 5 to 10 times stronger than regular paint sticks to surfaces. Because of this strength, parts made this way don’t chip easily and they also handle heat better than untreated aluminum would. Another cool thing about anodized surfaces is their ability to soak up dyes, allowing manufacturers to add colorful finishes. After coloring, technicians seal these tiny pores to protect them, creating a protective coating typically ranging from half a micrometer up to around 25 micrometers thick. These properties make anodized aluminum especially useful in demanding environments like airplanes or boats where durability matters most. The Powder Coating Process: Electrostatic Application and Thermal Curing The powder coating method works by spraying dry polymer particles like polyester, epoxy or combinations of these onto metal surfaces that have been grounded. The electrostatic charge helps these particles stick to the surface, resulting in around 60 to 80 percent transfer efficiency. After application, the coated components go through a curing process at temperatures between 180 and 200 degrees Celsius. This heat melts the powder into a smooth, solvent free film that’s anywhere from 50 to 300 micrometers thick. One major advantage of this technique is that it doesn’t release volatile organic compounds into the air, plus most of the excess powder can be collected again for reuse, sometimes as much as 98%. That makes it pretty good for the environment compared to other methods. Although it works great for things like outdoor furniture and household appliances because they resist both UV light and chemicals, there is one downside worth mentioning. When applying thicker layers, the fine details on precision machined parts might get hidden underneath the coating. Metal Plating Techniques: Electroplating and Electroless Deposition for Functional Coatings The process of electroplating applies metals such as nickel, zinc, and chrome using electrochemical methods, whereas electroless plating works differently by employing autocatalytic reactions to create even coatings on intricate shapes. For those dealing with corrosion issues, zinc-nickel alloys stand out because they can withstand salt spray tests for around 1,000 hours according to ASTM standards, which makes them popular choice for car industry bolts and screws. When it comes to achieving consistent thickness across tricky surfaces like threads, electroless nickel phosphorus does an excellent job maintaining about plus or minus 2 microns throughout. This not only increases surface hardness to approximately 60 HRC but also makes moving parts slide better against each other. Another interesting application is silver plating that cuts down contact resistance between components by roughly 40 percent when compared to regular copper contacts, something that really matters in high performance electrical connections where reliability counts most. Performance Comparison: Durability, Corrosion Resistance, and Environmental Impact Anodizing vs. Powder Coating: Strength, Wear Resistance, and Longevity The surface hardness achieved through anodizing typically ranges between 60 and 70 on the Rockwell C scale, which is pretty much on par with tool steel. This makes anodized surfaces particularly well suited for those tough industrial environments where wear and tear are constant concerns. Powder coating doesn’t come close to matching this level of hardness, usually sitting around 2 to 4H on the pencil scale. However, what powder coating lacks in hardness it makes up for in flexibility, providing superior protection against impacts when things get shaken up or subjected to sudden forces. According to research published in a recent materials science journal from 2024, samples treated with anodizing performed significantly better than their powder coated counterparts during abrasive wear testing, showing roughly 40 percent improvement overall. On the flip side, the same study noted that powder coatings held up about 25 percent better when tested for resistance to mechanical impacts, making them a good choice for certain applications despite their lower hardness rating. Corrosion Protection Capabilities Across Anodizing, Powder Coating, and Plating Aluminum that’s been anodized has built-in resistance against corrosion and can typically hold up for well over 1,000 hours during salt spray tests. When it comes to powder coatings, they basically create a shield between the metal and whatever might be causing damage. The best ones made from epoxy can last around 2,000 hours before showing signs of wear. For those working with electroplated zinc-nickel alloys, these materials provide what’s called sacrificial protection, meaning they take the hit first before the base metal gets damaged. These coatings generally stick around for somewhere between 500 to maybe 800 hours under really tough conditions. But here’s the catch: how well any of these coatings work all comes down to proper surface prep. Even tiny flaws in the coating application can cause problems later on, sometimes making corrosion spread up to three times faster according to recent industry research (Ponemon 2023). Sustainability and Environmental Considerations in Surface Finishing Choices When it comes to eco-friendly finishes, powder coating stands out as one of the greenest choices around. It creates almost no volatile organic compounds (VOCs) and lets manufacturers recycle nearly all the excess material. On the flip side, anodizing involves those nasty acid baths and generates roughly 1.5 kilograms of sludge for every square meter worked on, which then needs special treatment before getting rid of it. Looking at the bigger picture, studies indicate that traditional chromium electroplating leaves behind a carbon footprint about three times what we see with powder coatings. Fortunately, newer trivalent chromium options have cut down toxicity levels by around 90 percent, making factory floors safer while still delivering good results in terms of finish quality and durability. Aesthetic and Design Flexibility: Color, Finish, and Customization Options Anodizing Aesthetics: Natural Metallic Look with Limited but Durable Color Range The anodizing process keeps aluminum looking shiny and metallic but also lets manufacturers add lasting colors like bronze, gold, black, and various dark metallic shades. When dyes get locked into the porous oxide layer during treatment, they create finishes that resist fading from sunlight. According to the Material Durability Report from 2022, these coatings maintain about 95% of their original brightness even after sitting outside for twenty years. While the range of available colors isn’t as broad as some might want, what makes anodized aluminum so appealing is how beautifully it holds up over time. Architects love it for building facades and designers incorporate it into high-end gadgets where appearance matters just as much as function. Powder Coating Versatility: Wide Color Palette and Texture Customization When it comes to design options, powder coating really stands out. Manufacturers can choose from thousands of RAL and Pantone color shades, giving products that extra pop customers love. The way powder is applied electrostatically means we get pretty consistent results most of the time, usually between 60 and 120 microns thick. And texture? Oh there’s plenty to play with too. Want something smooth and matte? Or maybe go for that hammered look or even create some interesting wrinkles on surfaces. For companies looking to stand out, multi layer techniques open up all sorts of possibilities. Think about those fancy tool handles, appliance exteriors, or car parts that need both protection and style. What makes this stuff so great is how durable it stays once cured. Most coatings will chip or fade eventually, but these ones hold their shine remarkably well. Studies show they retain around 90% of their original gloss even after sitting outside for fifteen years straight through rain, snow, whatever nature throws at them. Plating for Decorative and Conductive Surface Enhancements Metal plating serves both practical purposes and looks great too. Chrome and nickel coatings give those shiny, mirror-like surfaces we see on high-end bathroom fixtures and car parts. Gold plating works wonders for electronics where good electrical connection matters most, plus it stands up to corrosion better than many alternatives. For industrial stuff that needs to last but not draw attention, electroless nickel-phosphorus is the go-to choice. It creates this even gray finish across surfaces with pretty tight control over thickness variations around half a micrometer. And lately there’s been some real progress in brush plating techniques. These new methods let manufacturers apply silver or copper only where needed without all the hassle of masking off other areas, which makes sense when adding conductivity features or special touches to certain spots on a component. Industry Applications and Material Compatibility by Use Case Aerospace and Automotive Uses of Anodizing for Lightweight, Durable Components Aerospace engineers and car manufacturers love anodizing because it makes aluminum stronger without making things heavier. Parts like airplane wing brackets and engine housings need this protective layer to survive all sorts of tem

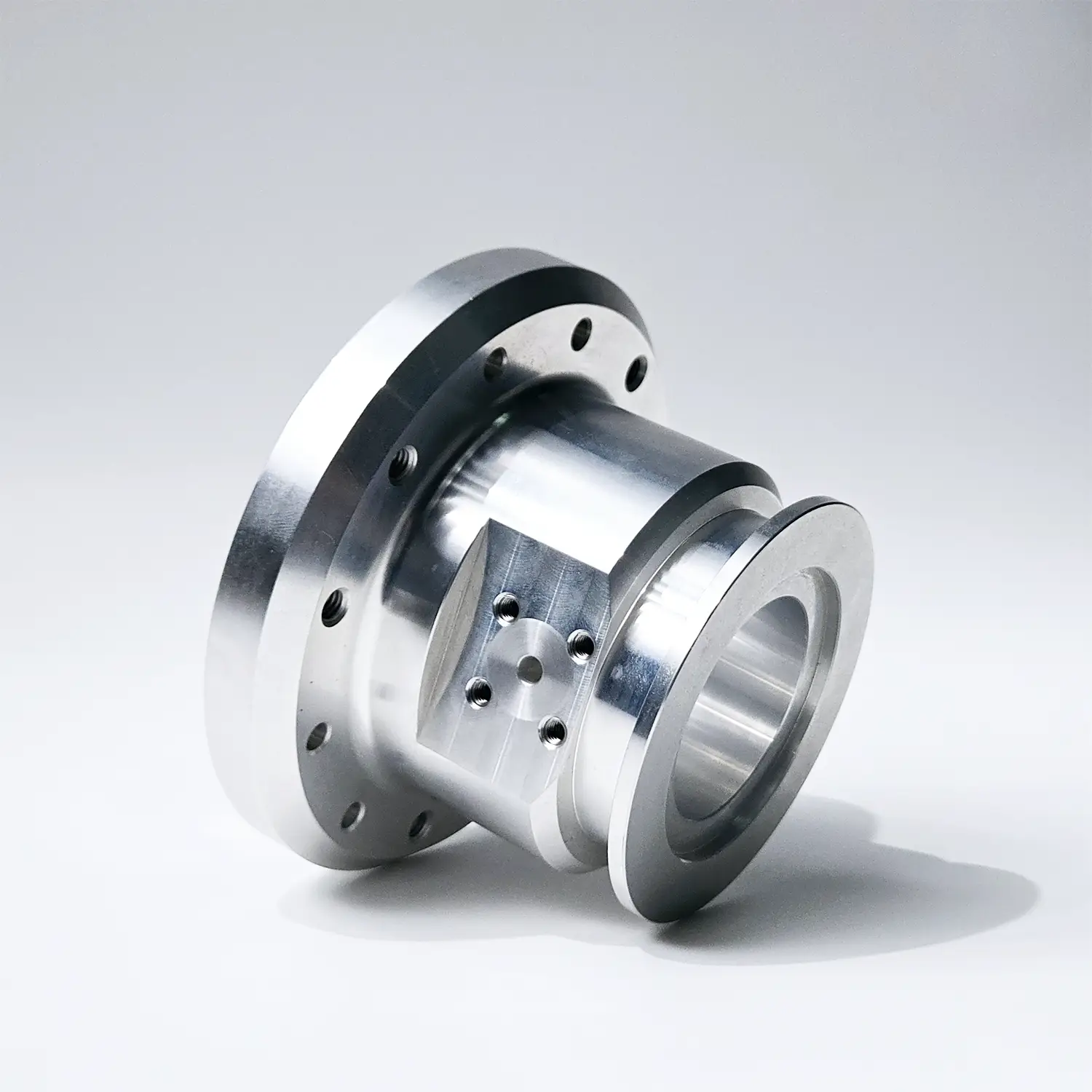

Understanding CNC Turning and Its Core Applications Basic Principles of CNC Turning CNC turning works by removing material from something that spins while cutting tools stay put, making it possible to craft all sorts of round parts. This differs from milling operations where everything stays still except the cutting head moving around. The whole idea behind turning depends on how things rotate symmetrically, which makes sense when looking at common items like engine shafts, pipe fittings, and those metal rings used in machinery. These days most CNC lathes come equipped with computer controls that handle speeds, feeds, and exact placement of cutting instruments. Some advanced machines can actually hold measurements within about half a thousandth of a millimeter, something manufacturers really need for parts that must fit together perfectly without any play. How Tool Movement and Workpiece Rotation Define Turning When machining parts on a lathe, the cutting tool travels back and forth along both the X and Z directions as the workpiece spins around. This movement allows for accurate shaping since we can control exactly how much material gets removed during each pass. For facing operations, the tool cuts across the end of the component at right angles to where it’s spinning, which makes surfaces nice and flat. Taper turning works differently though – here the operator tilts the tool slightly so it creates those cone-like shapes that many parts require. Modern machines are capable of running at incredibly fast speeds too, sometimes reaching 10,000 revolutions per minute. These higher spindle speeds really make a difference in the final product quality because they leave fewer visible tool marks and reduce unwanted vibrations that could affect dimensional accuracy. Typical Use Cases for CNC Turning in Industry CNC turning is widely used to manufacture rotationally symmetric components across key industries: Automotive: Engine valves, piston rings, and transmission shafts Aerospace: Hydraulic fittings, turbine shafts, and landing gear bushings Medical: Orthopedic implants, surgical tool handles, and syringe barrels A 2024 precision machining study found that 78% of cylindrical medical components are produced via turning due to its ability to achieve superior surface finishes (Ra ≤ 0.8 μm), which are critical for sterilization and biocompatibility. Machining Accuracy and Surface Finish in Turning Operations Getting down to high precision measurements around plus or minus 0.01 mm typically requires solid tooling setups along with machine beds that dampen vibrations effectively. When it comes to finishing work, those diamond coated cutting tools really make a difference, bringing surface roughness down to between Ra 0.4 and Ra 0.8 microns. Mill turn machines equipped with live tooling open up all sorts of possibilities too. They can handle things like drilling across the axis or creating flat surfaces on cylindrical parts, which goes way beyond what standard lathes can do. But here’s the catch: turning operations just don’t cut it when dealing with complex shapes that aren’t circular. That’s where milling steps in as the go-to solution for these kinds of challenges in manufacturing shops everywhere. Exploring CNC Milling: Capabilities and Common Applications Fundamentals of CNC Milling Operations In CNC milling, multi-point cutting tools spin around and cut away material from a workpiece that stays put during the process. This setup works really well when creating complicated shapes such as slots, pockets, and those tricky 3D contours that would be hard to make any other way. What happens here is pretty straightforward actually the part being worked on doesn’t move at all while the cutting tool dances across three, four, sometimes even five different directions. Face milling, peripheral milling, and thread milling are just some of the standard tasks performed by these machines. These days, good quality CNC mills can hit super tight specs, getting within plus or minus 0.0005 inches. That kind of precision makes them indispensable in industries where accuracy matters most like aerospace engineering, car manufacturing, and medical device production. How Milling Differs from Turning in Tool and Workpiece Dynamics Milling works differently from turning where the workpiece spins and a single cutting tool does the job. Instead, milling holds the workpiece still while moving a multi-point rotating cutter across multiple axes. This approach lets manufacturers create all sorts of shapes that just don’t work well with traditional turning methods. Think about flat surfaces, complex gears, or even box-like enclosures these are all possible with milling techniques. Modern five axis milling machines take this further by reaching five different sides of a component during a single operation. This cuts down on mistakes from handling parts between operations and opens up possibilities for creating much more complicated geometries. For companies working on prototypes or small batches of detailed components, CNC milling becomes really important because it handles those intricate designs so much better than other machining processes. Common Industrial Applications of CNC Milling CNC milling supports demanding applications requiring high accuracy and design flexibility: Aerospace: Turbine blades, structural fittings, and lightweight aluminum components Automotive: Engine blocks, transmission housings, and suspension parts Medical: Implants and surgical instruments made from biocompatible materials Electronics: Heat sinks, enclosures, and precision connectors A 2024 manufacturing report revealed that 68% of aerospace manufacturers rely on 5-axis milling for mission-critical components, highlighting its importance in advanced engineering. Achieving Precision and Surface Quality in Milling Surface finishes below 8 µin Ra are achievable through optimized spindle speeds, toolpath strategies, and advanced tool coatings. Key factors influencing quality include: Tool rigidity: Carbide or diamond-coated tools minimize deflection and vibration Coolant systems: Prevent thermal expansion in heat-sensitive materials like titanium Machine calibration: Laser alignment ensures micrometer-level positional accuracy Multi-axis milling reduces repositioning needs, maintaining tolerances within ±0.0002 inches—critical for high-stakes applications. Key Differences Between CNC Turning and Milling Workpiece Motion: Rotating vs. Stationary Setup What really sets these processes apart is how the material moves during operation. When we talk about CNC turning, what happens is that the piece being worked on spins very fast usually somewhere between 1,000 to 3,000 revolutions per minute. At the same time, the cutting tool stays put and makes those radial cuts. This setup works best when creating round or cone-shaped objects such as various types of shafts and bushings. On the other hand with CNC milling, things work differently. Here, the object remains fixed in place while the cutting tool itself does all the moving around different directions. The tool has several cutting points and can move along multiple axes which allows it to create all sorts of shapes from simple flat surfaces to complex angles and oddball contours. Think about gears or housing components for machines where this kind of versatility comes in handy. Accuracy, Surface Finish, and Tolerance Comparisons Turning generally delivers tighter tolerances (±0.001″–0.005″) and smoother finishes (0.8–1.6 μm Ra) for symmetrical parts due to continuous contact during rotation. Milling achieves comparable dimensional control (±0.002″–0.010″), though complex geometries may require additional finishing steps. For non-round features like slots or pockets, milling provides superior precision and consistency. Process Flexibility and Complexity for Different Geometries When it comes to manufacturing, turning works best for things that are round or cylindrical in shape. Milling on the other hand handles all sorts of different forms from angled surfaces to threaded holes and even complex three dimensional shapes. The latest generation of multi axis mill turn equipment has changed the game somewhat, letting shops combine these two methods in one setup which saves time and money. Still worth noting though, traditional milling still holds its own瘠 when dealing with parts that aren’t just simple circles or have several flat sides. This makes milling particularly useful for creating intricate designs that would be impossible with standard turning techniques alone. How to Choose Between CNC Turning and Milling for Your Project Matching Part Geometry and Feature Requirements to the Right Process CNC turning works really well for parts that are symmetrical around an axis like shafts, bushings, those kinds of things. But when there’s something different going on in the design, say hexagonal shapes, deep pockets, or curved surfaces, that’s where CNC milling starts to shine. The machines can move in multiple directions which makes them much more flexible for complex geometries. A recent report from Machining Processes in 2024 found pretty interesting results too. They looked at all sorts of projects and discovered that around 78% saw better dimensional accuracy when they switched from turning to milling for these non-cylindrical features. Makes sense really, since the extra movement options just give manufacturers more control over tricky shapes. Material Considerations in CNC Turning vs Milling Selection Metals: Aluminum and brass perform well in both processes; hardened steels are typically better suited for milling due to tool engagement and precision requirements Plastics: Turning reduces delamination risks in acrylics, while milling handles fiber-reinforced polymers more effectively Composites: Milling helps manage tool wear in abrasive

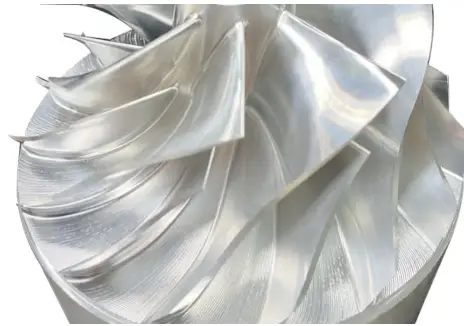

Understanding Axis Machining Types and Their Core Capabilities 3, 4, and 5 Axis Machining – When to Use Each 1. 3 Axis Machining: The Foundation of Simple, Cost-Effective Fabrication A 3 Axis Machining system operates by moving the cutting tool along three linear axes—X (left/right), Y (forward/backward), and Z (up/down)—within a 3D space. This linear-only movement makes it ideal for shaping simple, flat or shallow 3D parts, such as brackets, plates, or basic molds. Its key advantage lies in cost efficiency: the machinery has lower complexity, requires minimal setup time, and reduces operational overhead—all of which boost profit margins for high-volume production of straightforward components. For example, manufacturing aluminum mounting plates for electronics relies heavily on 3 Axis Machining, as the part only needs three core processes: face milling (smoothing the top surface), edge profiling (shaping the plate’s perimeter), and drilling (adding holes for fasteners)—all of which are easily completed with linear axis movements. 2. 4 Axis Machining: Rotation for Cylindrical and Curved Features 4 Axis Machining builds on the 3 Axis setup by adding one rotational axis (typically the A-axis, which rotates around the X-axis). This extra axis allows the workpiece to spin while the tool moves linearly, eliminating the need for manual repositioning and unlocking capabilities for parts with wrapped or curved features. It excels at components where features follow a cylindrical shape—such as slots on a valve stem, angled holes along a curved surface, or grooves on a pulley. A 2023 manufacturing report highlighted a critical benefit: shops using 4 Axis Machining for cylindrical parts saw a 28% reduction in setup time compared to 3 Axis systems (which require multiple repositionings). By avoiding manual flipping or resecuring of the workpiece, 4 Axis also improves accuracy and consistency, reducing human-induced errors. 3. 5 Axis Machining: Versatility for Complex, Multi-Sided Precision 5 Axis Machining is the gold standard for highly contoured, multi-sided parts. It adds two rotational axes (usually the A-axis, rotating around X, and C-axis, rotating around Z) to the three linear axes, enabling the cutting tool to approach the workpiece from nearly any angle. This versatility is indispensable in industries like aerospace and medical, where parts demand intricate geometries and ultra-tight tolerances. Examples include titanium turbine blades (with curved airfoils and internal cooling channels), hip implants (matching human anatomy), and aircraft structural components. Unlike 3 or 4 Axis systems, 5 Axis Machining completes complex parts in a single setup: for instance, a turbine blade can be fully machined without repositioning, achieving tolerances as tight as ±0.005mm and superior surface finish. 3 Axis vs. 4 Axis Machining: Efficiency and Application Boundaries The table below compares core features of 3 and 4 Axis Machining to clarify their respective use cases: Feature 3 Axis Machining 4 Axis Machining Axis Configuration X, Y, Z (linear only) X, Y, Z (linear) + 1 rotational (A/C) Best For Simple flat/3D parts (brackets, plates) Cylindrical parts with wrapped features (valve stems, pulleys) Setup Time Short (10–30 mins for standard parts) Moderate (20–45 mins, single setup) Material Versatility Works with most metals/plastics; limited by part shape Same materials; optimized for curved/cylindrical workpieces Tolerance Range ±0.01–0.05mm ±0.008–0.03mm Key Limitations & Advantages 3 Axis Machining struggles with parts that have undercuts, angled holes on curved surfaces, or wrapped features—these require multiple setups, increasing time and error risk. 4 Axis Machining solves this for cylindrical parts: for example, drilling 45° interval holes on a steel shaft is 3x faster with 4 Axis (the shaft spins to align each hole) versus 3 Axis (manual repositioning). However, 4 Axis fails with non-cylindrical, multi-sided parts (e.g., a cube with angled holes on three faces)—reorienting the part negates its efficiency. 4 vs. 5 Axis Machining: Precision vs. Complexity Tradeoffs 4 Axis Machining acts as a “middle ground” for complexity, but it cannot match 5 Axis’s ability to handle asymmetrical, multi-sided parts. Here’s how they compare: 1. Part Complexity Handling 5 Axis’s dual rotational axes let the tool “wrap around” the workpiece—critical for parts like carbon fiber aircraft wing ribs (with curved edges, internal lightening holes, and angled attachment points on all six sides). A leading aerospace manufacturer reported: 42% faster production time with 5 Axis vs. 4 Axis. Scrap rates dropped from 8% to 2% (single setup eliminates alignment errors). 2. Precision & Surface Finish 5 Axis systems use dynamic indexing to keep the tool perpendicular to the cutting surface, reducing tool wear and improving surface quality. For medical implants (e.g., knee replacements, where biocompatibility depends on smoothness): 5 Axis achieves Ra 0.4μm surface finishes. 4 Axis only reaches Ra 0.8μm. 3. Cost & Programming 5 Axis requires: Advanced CAM software (with simulation tools) to avoid collisions. Higher initial investment.   This makes it less cost-effective for simple or low-volume parts—but invaluable for complex, high-precision components. Matching Axis Machining to Material, Geometry, and Industry Needs 1. Axis Selection Based on Workpiece Material & Hardness Material hardness directly impacts axis choice, as harder materials generate more heat and risk thermal distortion: Material Type Recommended Axis Type Rationale Soft materials (aluminum 6061-T6, ABS plastic) 3 Axis Easy to cut; linear movements achieve desired finish. Hard materials (stainless steel 316L, titanium Ti-6Al-4V) 4/5 Axis Reduces setup frequency (4 Axis) or minimizes heat buildup (5 Axis). According to the 2022 ASM International Machining Guidelines: For materials with hardness >30 HRC (e.g., hardened steel), 5 Axis Machining extends tool life by 35% vs. 3 Axis. Example: Machining a hardened steel gear blank with 5 Axis uses a spiral tool path (distributes force/heat), extending carbide insert life by 50% vs. 3 Axis’s high-force straight cuts. 2. Industry-Specific Axis Requirements Different sectors have unique demands that dictate axis selection: Industry 3 Axis Use Cases 4 Axis Use Cases 5 Axis Use Cases Automotive Engine brackets, sensor housings Drive shafts, fuel injectors High-performance racing cylinder heads Aerospace Simple structural brackets Basic cylindrical components Turbine blades, aircraft frames, satellites (91% of turbine blade makers use 5 Axis, per 2023 report) Medical Plastic tool housings Surgical instrument shafts Titanium hip implants, spinal rods Consumer Goods Plastic phone cases, aluminum cookware Bottle caps (threaded necks) Luxury watch casings (rare) Avoiding Common Axis Machining Mistakes 1. Mistakes in Axis Selection for Production Volume Overusing 5 Axis: For low-volume, simple parts (e.g., 50 aluminum brackets), 3 Axis costs 60% less (5 Axis hourly rates: $150–$300; 3 Axis: $50–$100). Underusing 5 Axis: For high-volume complex parts (e.g., 1,000 turbine blades), 4 Axis requires 3x more setup time than 5 Axis—raising labor costs and delays. Ignoring Geometry: Undercut parts (e.g., recessed slots on plastic housings) need 5 Axis; 3 Axis causes misalignment, 4 Axis can’t reach non-cylindrical undercuts. A 2023 study found 68% of 3/4 Axis scrap parts stem from this error. 2. Programming & Setup Best Practices 3 Axis Use basic G-code for linear movements. Employ quick-change fixture plates to reduce setup time (10–15 mins per part switch). Always run a dry test (no material) to avoid tool-fixture collisions (3 Axis tools are larger and more prone to impacts). 4 Axis Use CAM software with 4 Axis simulation to visualize rotation. Center the workpiece on the A/C axis (a 0.1mm offset causes dimensional errors). Secure cylindrical parts with chucks/collets for concentricity—one automotive supplier reduced errors by 40% with proper centering. 5 Axis Invest in advanced CAM software (e.g., Mastercam, SolidWorks CAM) with collision detection. Use a 5 Axis trunnion table to secure the workpiece (enables full rotation without repositioning). Train programmers on “lead angle control” (adjust tool angle to improve finish/tool life)—aerospace shops using this achieve 95% first-pass yields. Step-by-Step Axis Machining Selection Process Follow this framework to choose the right axis type for industrial applications: 1. Start with the Part: Geometry, Tolerance, Material Geometry: Flat surfaces = 3 Axis; cylindrical/wrapped features = 4 Axis; multi-sided/contoured shapes = 5 Axis. Example: Flat aluminum plate (3 Axis); steel shaft with helical slots (4 Axis); titanium turbine blade (5 Axis). Tolerance: ±0.005mm or tighter = 5 Axis; ±0.05mm = 3/4 Axis. Material: Soft = 3 Axis; hard = 4/5 Axis. A 2023 Precision Machining Report found shops that analyze parts first reduce axis selection errors by 55%. 2. Align with Production Volume & Cost Goals Production Volume Simple Parts Complex Parts High (>1,000 units) 3 Axis (low cost) 4/5 Axis (faster setup) Low (1–100 units) 3 Axis (economical) 5 Axis (avoids excess setup time) Per the 2024 Industrial Machining Guide, “cost-volume analysis” (linking axis to quantity) cuts overall costs by 22%. 3. Evaluate Shop Resources Machine Availability: Use 3 Axis for simple parts if no 4/5 Axis machines; outsource complex work for low volumes. Programmer Expertise: Start with 4 Axis for moderate complexity if the team lacks 5 Axis experience. Fixture/Tooling: Ensure access to specialized tools (e.g., trunnion tables for 5 Axis) before selecting the axis type.
