5-Axis CNC Machining Services
- Multi-functional
- Precision, and Efficient
- Achieving 60% Efficiency Improvement
- Zero Error in Complex Surface Formation
Why Choose Sino Rise for Precision CNC Machining
Leading Technology and Extensive Experience to Provide Efficient and Precise Solutions

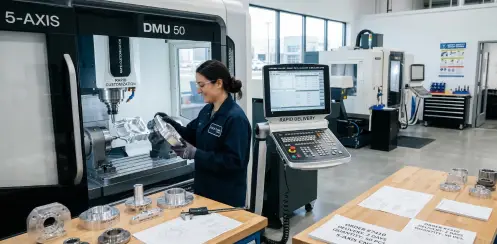

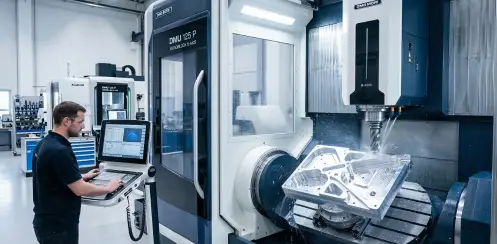

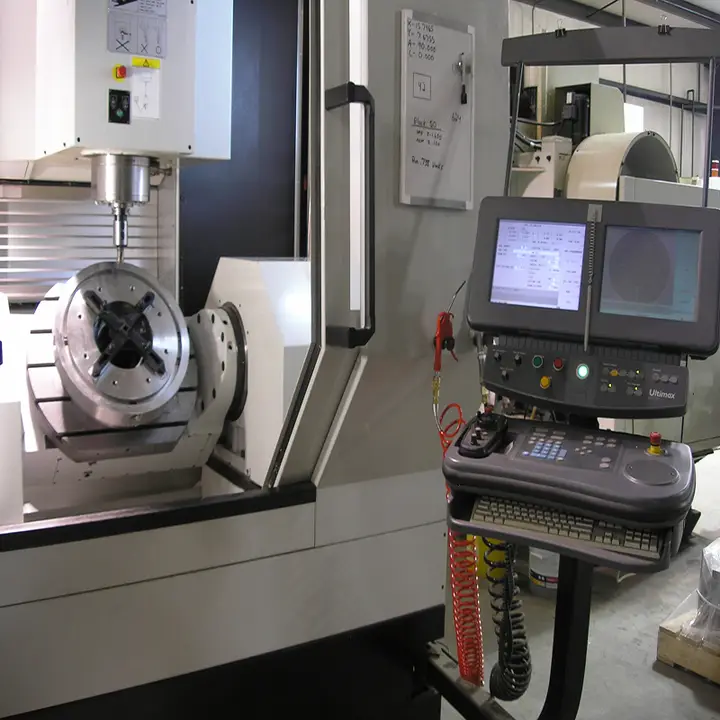

Advanced Equipment and Technology
With over 17 years of precision machining experience, we have multiple advanced 5-axis CNC machines, ensuring high precision and efficiency while maintaining stable processing quality and delivery schedules.

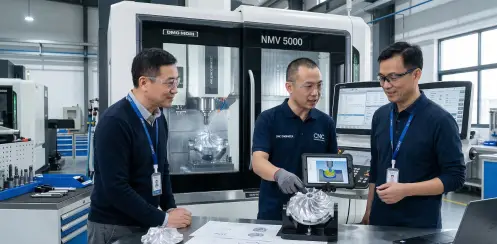

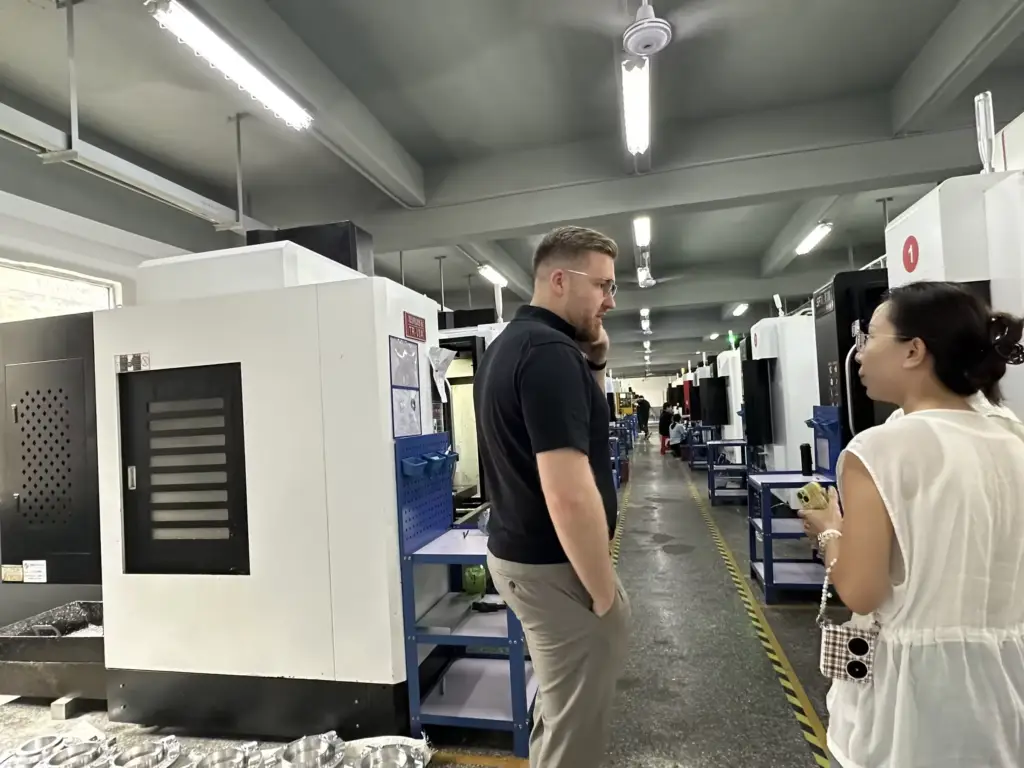

One-on-One Engineer Service
Each project is managed by our experienced engineering team, from blueprint review and DFM optimization to processing execution, ensuring every part meets your specific requirements.
Fast Delivery and Custom Services
We offer tailored solutions based on your needs, ensuring efficient and rapid delivery for prototypes, small batches, and large-scale production.
Ready to Start Your 5-Axis CNC Machining Project?
Upload your CAD files and receive a fast, accurate machining quote.
Upload
Review
Quote
Production
Simultaneous 5 Axis Machining vs. 3+2 Machining: How to Choose
Simultaneous 5-axis CNC machining and 3+2 machining use the same five machine axes, but they differ in how those axes move during cutting and which parts they are best suited for.

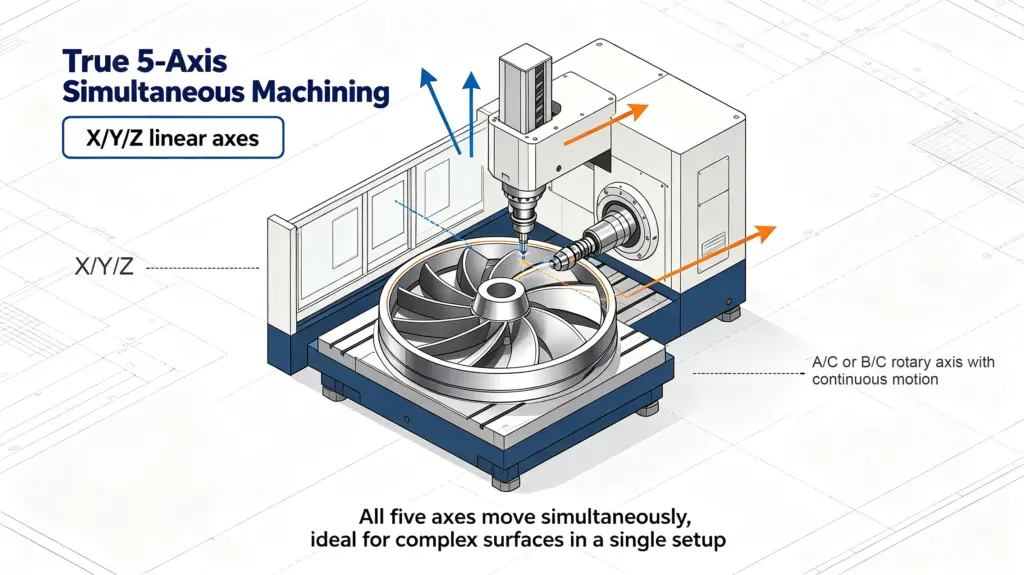

Simultaneous 5-Axis Machining

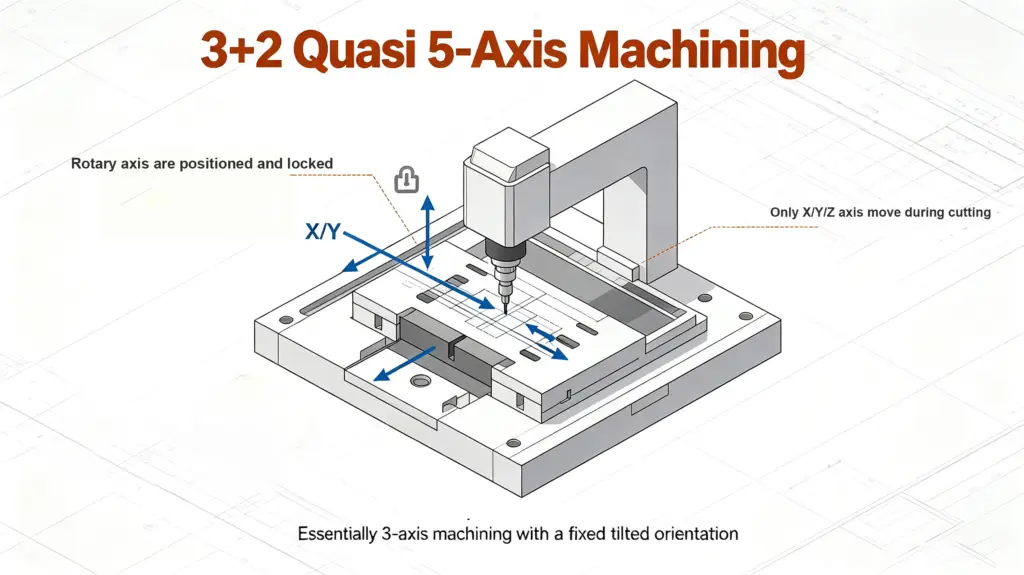

3+2 Axis Machining
Axis Motion
All five axes can move together during machining. As the tool follows the programmed path, the rotary and linear axes continuously coordinate to change the cutting position and orientation. This allows the machine to follow complex surfaces and contours without repeatedly stopping to reposition the workpiece.
Three linear axes perform the cutting from a fixed indexed angle. The two rotary axes first rotate the part or tool into the required position and then remain stationary during the cut. When another side or angle needs to be machined, the rotary axes index to a new position before cutting continues.
Part Geometry
Best suited for complex contours, deep cavities, impellers, and freeform surfaces that require continuous multi-axis tool movement.
Well suited for multi-face parts, angled holes, pockets, and features that can be machined from several indexed positions.
Setup Requirements
More features can often be completed in a single setup, reducing repositioning and helping maintain consistency between machined features.
Several indexed positions may be required to complete the part, depending on the number and orientation of features.
Surface Finish
Continuous tool motion is better suited to smooth transitions and complex curved surfaces with fewer visible tool marks.
Suitable for standard machined surfaces, but complex contours may require additional finishing or repositioning.
Best For
Ideal for high-complexity parts where geometry, surface continuity, and fewer setups are priorities.
A practical choice for multi-angle parts that do not require continuous five-axis motion.
Types of 5 Axis CNC Machine Configurations
5-axis CNC machines use different rotary-axis configurations depending on part size, geometry, tool access, and machining requirements. Two common designs are trunnion-style and swivel-head configurations.

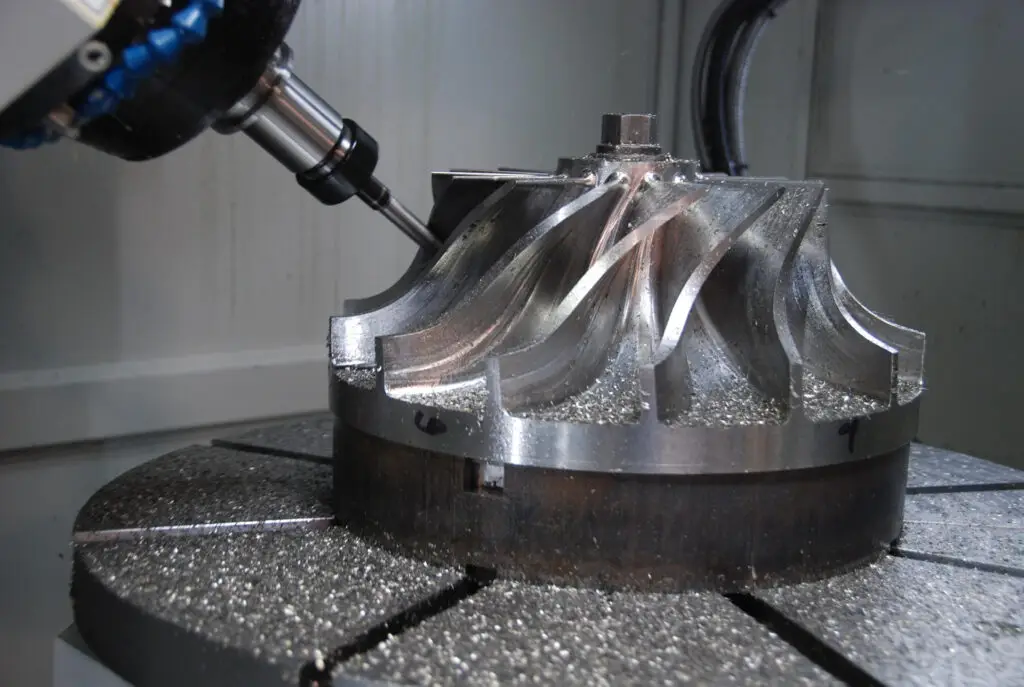

Trunnion-Style 5-Axis Machine

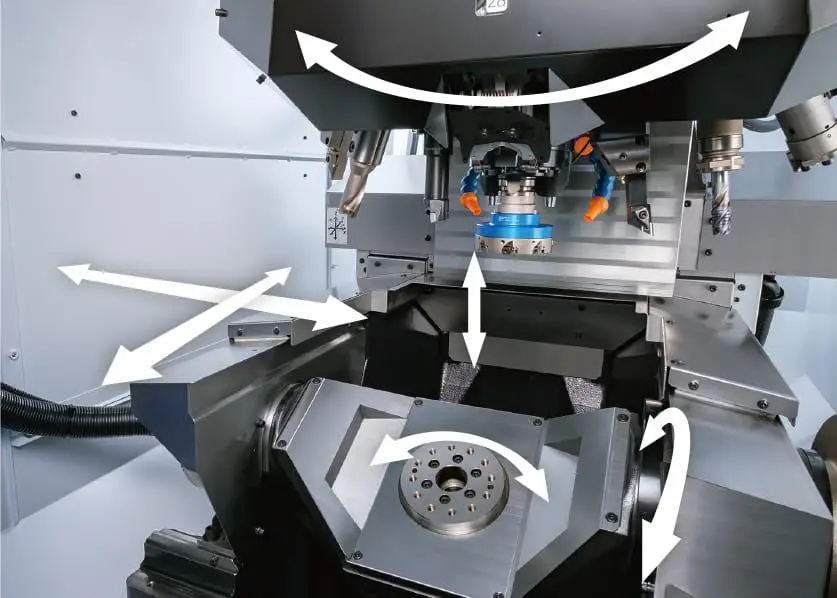

Swivel-Rotate-Style 5-Axis Machine
Workpiece Movement
Rotary table tilts and rotates the workpiece during positioning and machining.
Workpiece remains more stable while the spindle tilts or rotates around the part.
Axis Configuration
Typically combines tilting and rotary table axes.
Typically combines a tilting spindle head with a rotary axis.
Tool Access
Strong access to multiple sides of small and medium-sized parts.
Greater flexibility around large, deep, or irregular components.
Tool Length
Longer tools may be required for some deep or restricted features.
Flexible spindle orientation can allow shorter and more rigid cutting tools.
Part Type
Best for small to medium complex precision parts and freeform surfaces.
Better for larger, heavier, or irregularly shaped parts and housings.
Typical Applications
Medical, aerospace, mold making, precision components.
Aerospace structures, automotive, energy equipment, large housings.

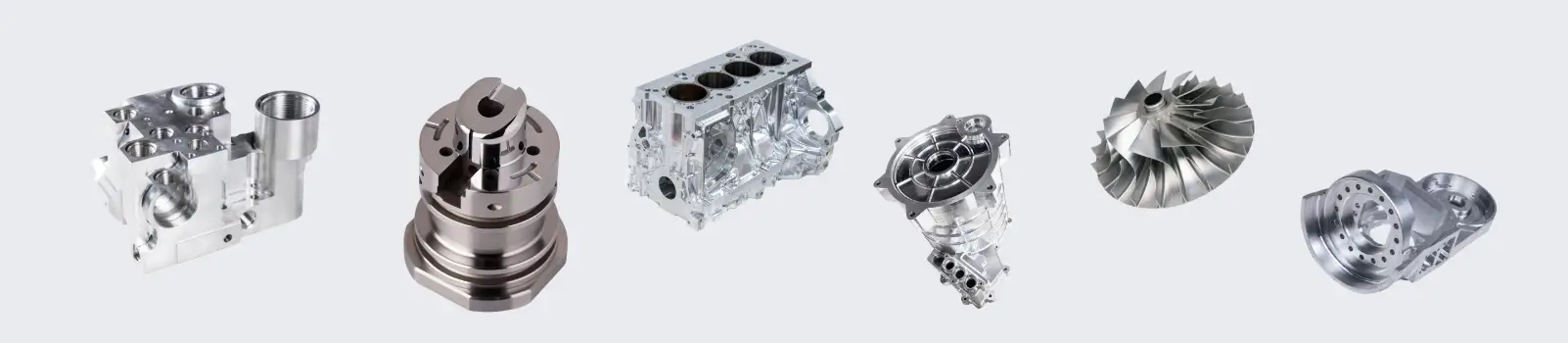

5 Axis Machining Parts and Applications
Explore how 5-axis CNC machining supports complex, high-precision parts across automotive, aerospace, medical, robotics, semiconductor, and optical applications.

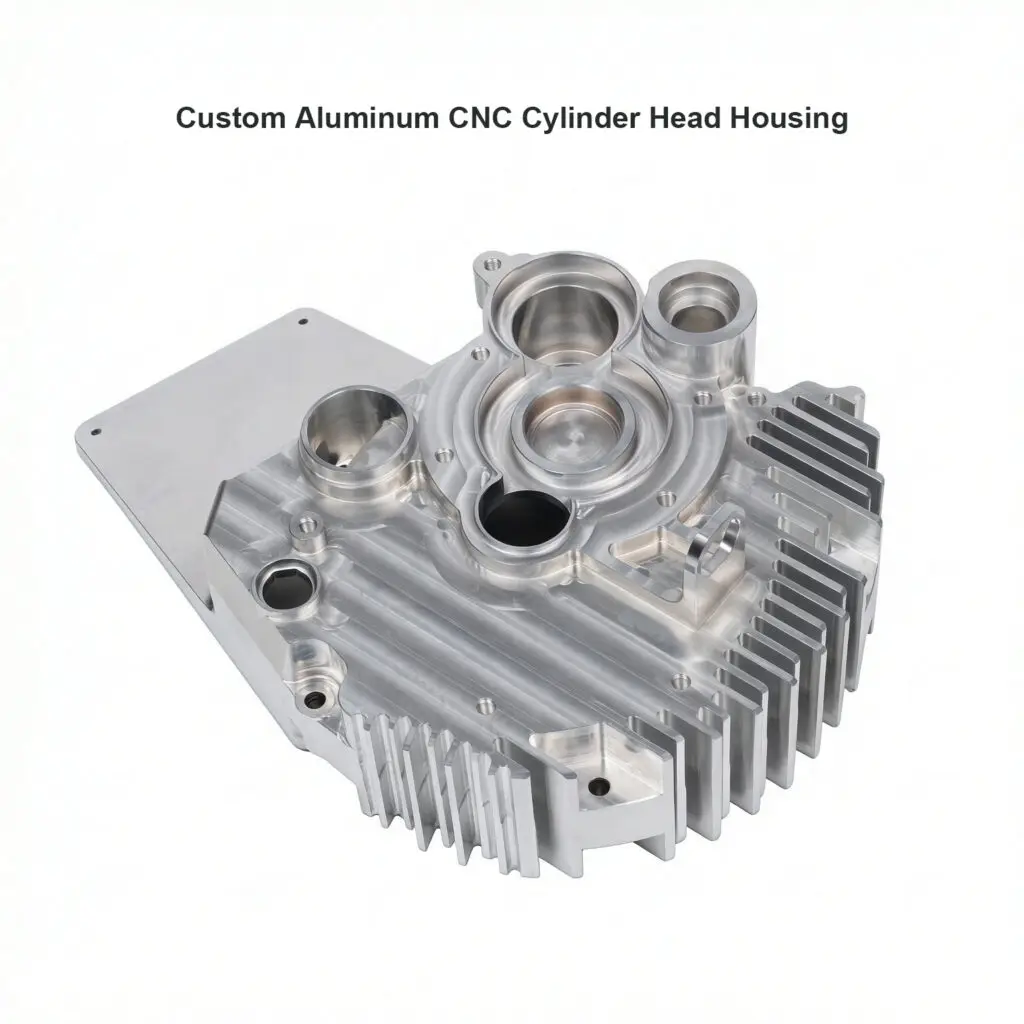

Automotive
5-axis CNC machining is suitable for complex automotive components that require multi-angle machining, tight tolerances, and consistent dimensional accuracy.
- Engine housings
- Transmission components
- Suspension parts
- Precision brackets
- Custom automotive prototypes

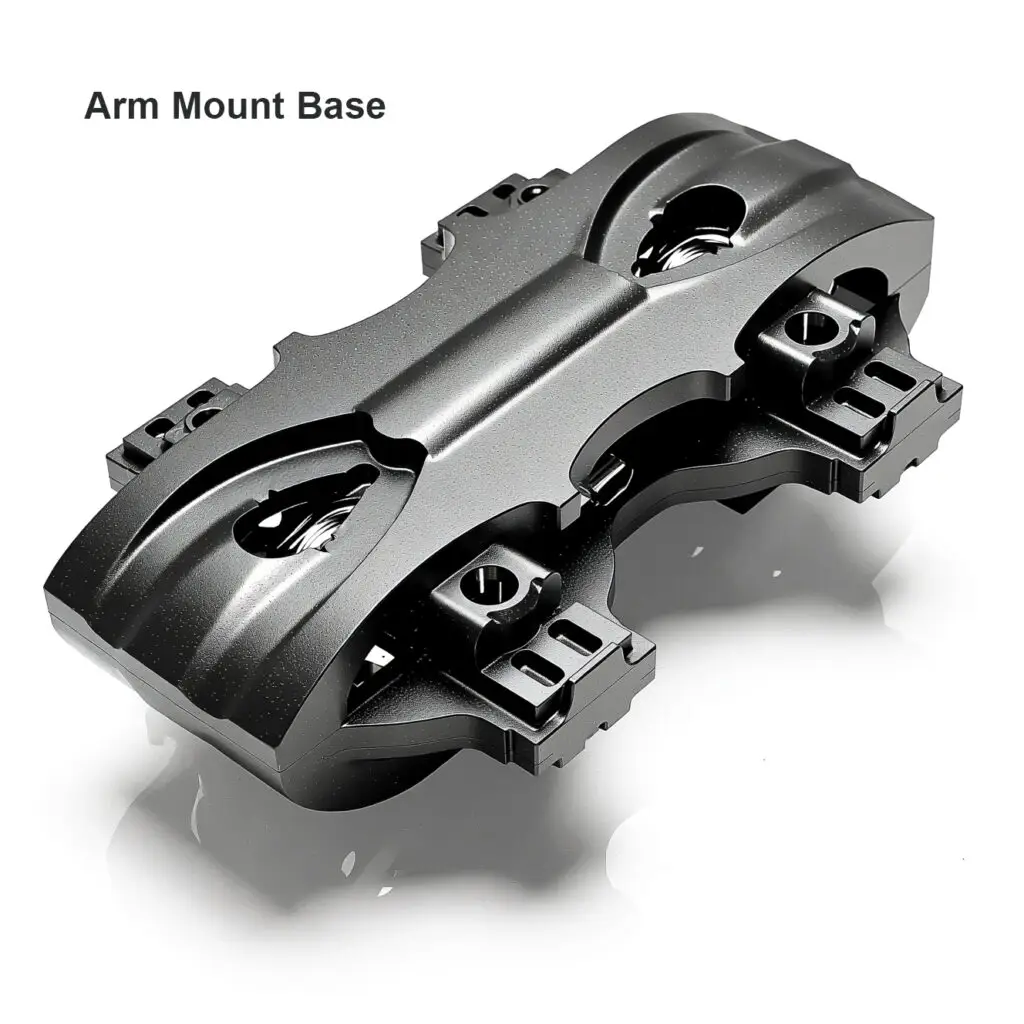

Aerospace
5-axis CNC machining enables the production of lightweight aerospace components with complex geometries, tight tolerances, and excellent surface finishes for demanding flight applications.
- Aircraft structural parts
- Engine components
- Landing gear components
- Precision brackets
- Lightweight aluminum prototypes

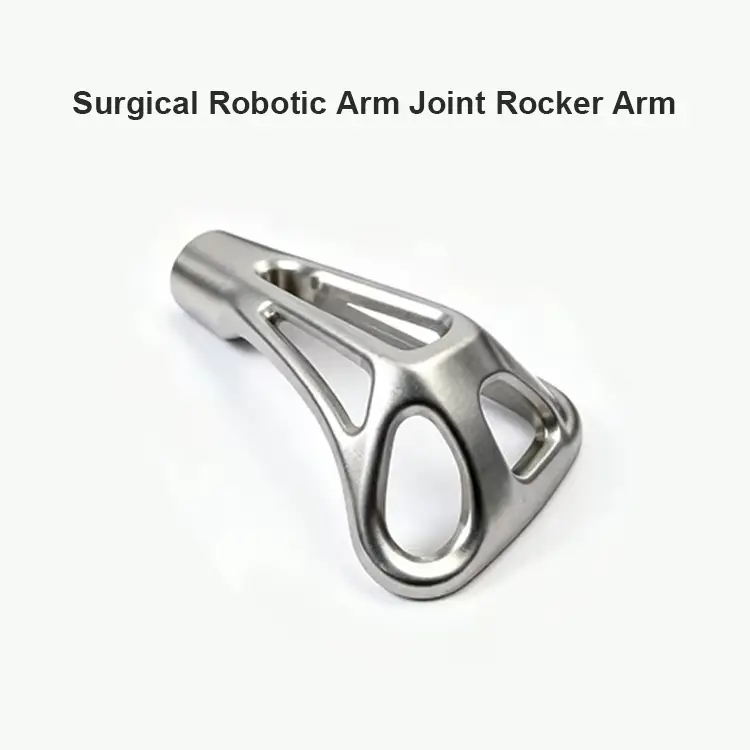

Medical
5-axis CNC machining supports precision medical components with complex geometries, small features, and tight tolerance requirements.
- Surgical instrument parts
- medical device housings
- implant components
- precision fixtures
- custom prototypes

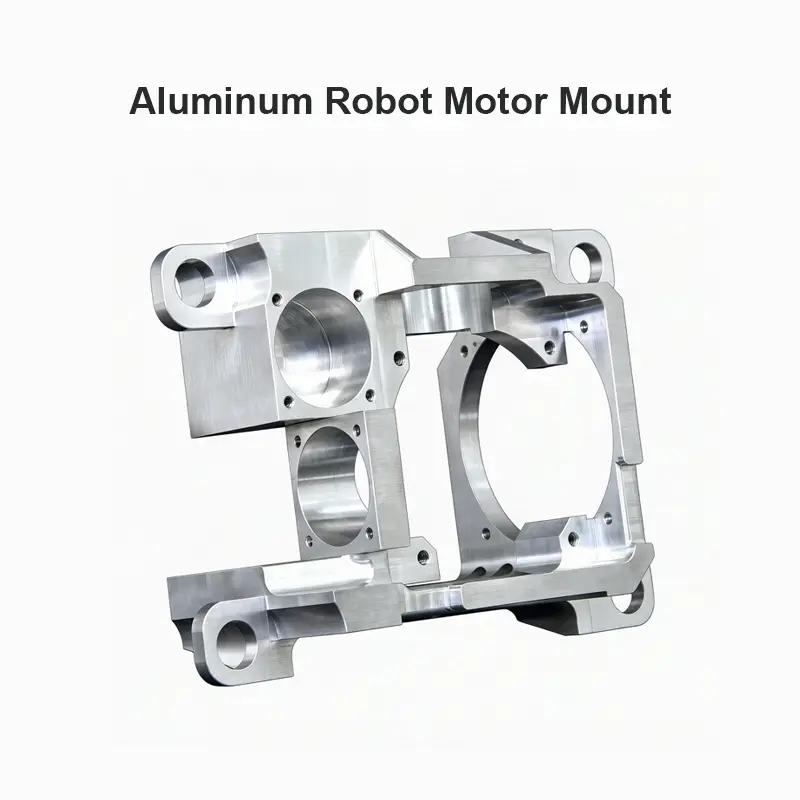

Robotics
5-axis CNC machining enables complex robotic components to be produced with fewer setups and accurate multi-surface machining.
- Robot joints
- end-effectors
- structural brackets
- actuator housings
- precision frames

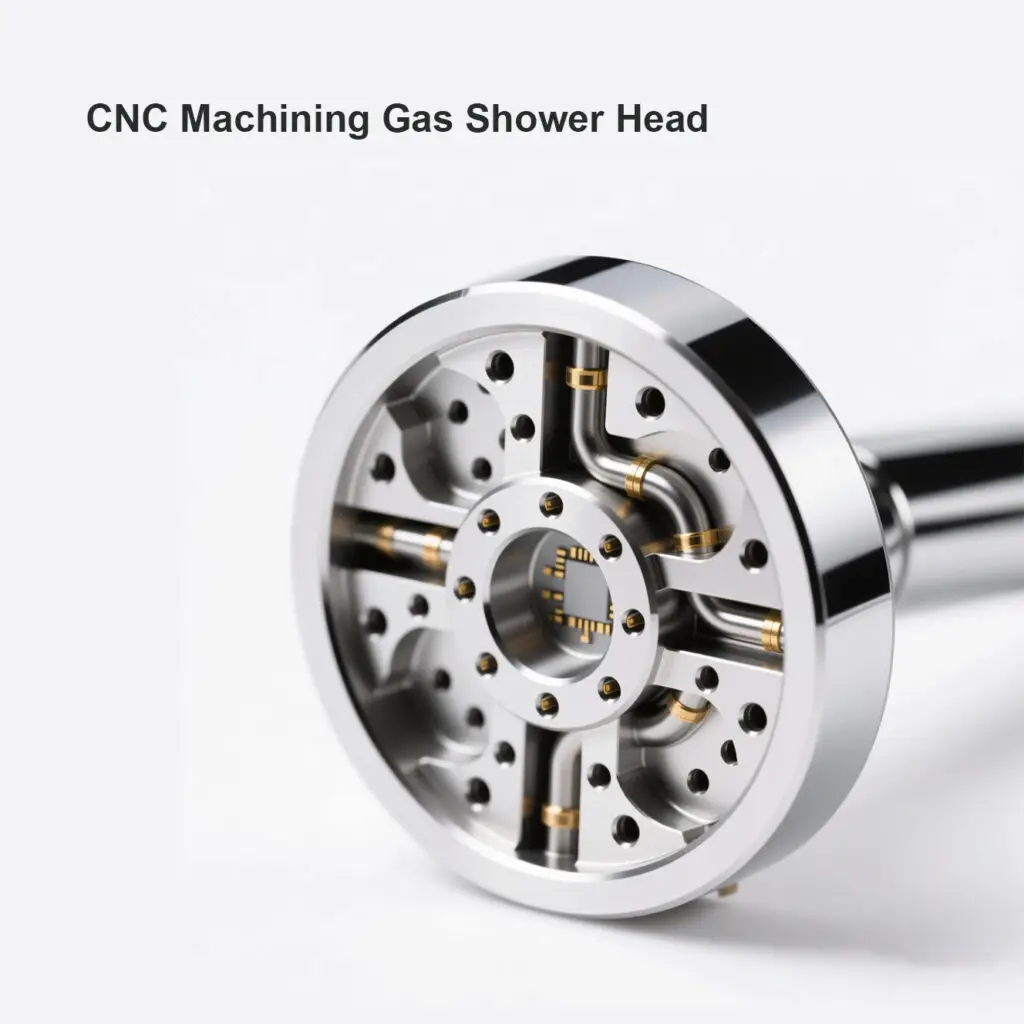

Semiconductor
5-axis CNC machining is suitable for semiconductor equipment parts that require precise hole positions, flatness, complex features, and stable dimensional control.
- Fixture plates
- vacuum components
- precision frames
- equipment housings
- positioning components

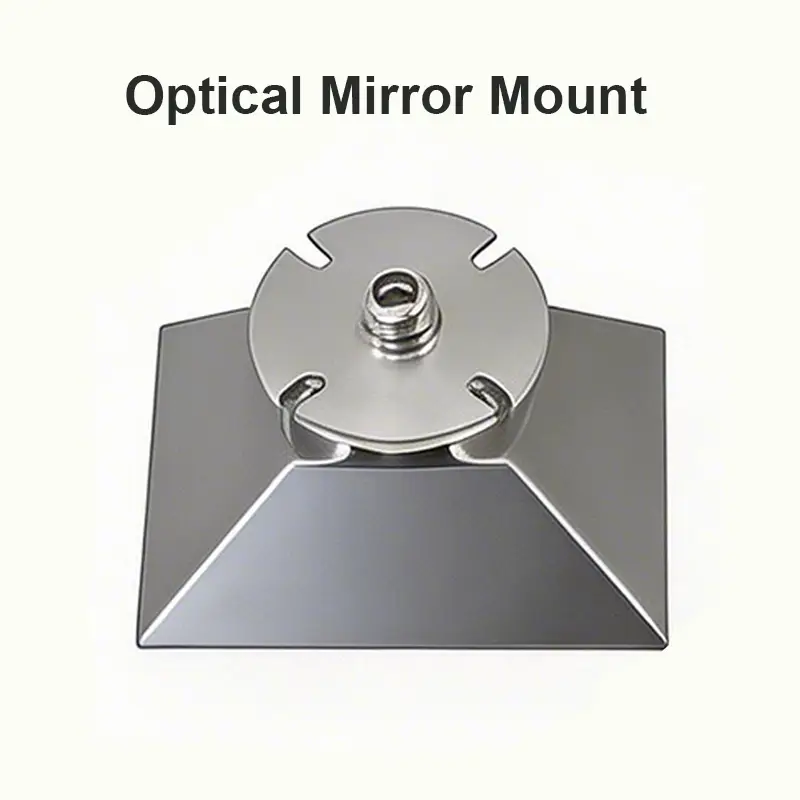

Optical
5-axis CNC machining supports optical equipment components with complex surfaces, precise mounting features, and high dimensional consistency.
- Lens housings
- optical mounts
- instrument frames
- precision brackets
- alignment components
Materials Used for 5 Axis CNC Milling
Explore commonly used metals and engineering plastics for 5-axis CNC machining, selected to meet different requirements for strength, weight, machinability, corrosion resistance, and part performance.
Aluminum
Aluminum is widely used in 5-axis CNC machining because of its low weight, good machinability, and suitability for complex precision parts.
- Lightweight
- Good machinability
- Corrosion resistant
- Suitable for complex geometries
Common Grades
6061, 7075, 2024
Machinability
Excellent
Strength-to-Weight Ratio
High
Corrosion Resistance
Good
Available Finishes
As machined, anodizing, bead blasting, polishing
Stainless Steel
Stainless steel is suitable for precision components that require high strength, corrosion resistance, wear resistance, and reliable performance in demanding environments.
- High strength
- Excellent corrosion resistance
- Good wear resistance
- Suitable for precision components
Common Grades
304, 316, 303, 17-4 PH
Machinability
Moderate
Strength
High
Corrosion Resistance
Excellent
Available Finishes
As machined, polishing, passivation, bead blasting
Steel
Steel is widely used in 5-axis CNC machining for components that require high strength, rigidity, wear resistance, and reliable mechanical performance.
- High strength
- Good rigidity
- Good wear resistance
- Suitable for load-bearing components
Common Grades
1018, 1045, 4140, D2
Machinability
Good to Moderate
Strength
High
Wear Resistance
High
Available Finishes
As machined, black oxide, plating, heat treatment
Titanium
Titanium is suitable for 5-axis CNC machining of high-performance components that require high strength, low weight, corrosion resistance, and complex precision features.
- High strength-to-weight ratio
- Excellent corrosion resistance
- Good heat resistance
- Suitable for complex precision parts
Common Grades
Grade 2, Grade 5 (Ti-6Al-4V)
Machinability
Difficult
Strength-to-Weight Ratio
Excellent
Corrosion Resistance
Excellent
Available Finishes
As machined, polishing, bead blasting, anodizing
Brass
Brass is well suited for precision CNC machining because of its excellent machinability, dimensional stability, corrosion resistance, and attractive surface finish.
- Excellent machinability
- Good corrosion resistance
- Good dimensional stability
- Suitable for precision fittings and components
Common Grades
C360, C260
Machinability
Excellent
Corrosion Resistance
Good
Electrical Conductivity
Good
Available Finishes
As machined, polishing, plating, brushing
Copper
Copper is commonly used for precision machined components that require excellent electrical conductivity, thermal conductivity, and reliable dimensional accuracy.
- Excellent electrical conductivity
- Excellent thermal conductivity
- Good corrosion resistance
- Suitable for functional precision parts
Common Grades
C110, C101
Machinability
Moderate
Electrical Conductivity
Excellent
Thermal Conductivity
Excellent
Available Finishes
As machined, polishing, plating, brushing
5 Axis Machining Design Guidelines for Complex Parts
Follow these practical design guidelines to improve machinability, reduce unnecessary machining complexity, and support more efficient 5-axis CNC production.
Feature
Guideline
Minimum Hole Diameter
≥ 0.5 mm (0.02 in)
Minimum Slot Width
≥ 0.5 mm (0.02 in)
Minimum Wall Thickness
Metals: ≥ 0.8 mm (0.031 in); Plastics: ≥ 1.0 mm (0.039 in)
Fillets and Corners
Use radii/fillets on internal corners to reduce stress and improve machinability
Deep Pockets
Avoid where possible; increase corner radius and reduce depth for better results
Material Suggestions
Aluminum (6061/7075), Stainless Steel, Titanium, PEEK
Common Five Axis Machining FAQs
A: 5-axis CNC machining is an advanced machining process that uses three linear axes (X, Y, and Z) combined with two rotary axes to control the cutting tool or workpiece position. Unlike traditional 3-axis machining, it allows the tool to approach parts from multiple angles, reducing the need for repeated setups. This makes it suitable for producing complex components with curved surfaces, angled features, deep cavities, and tight precision requirements.
A: 5-axis CNC machining works by coordinating five controlled movements simultaneously or positioning two rotary axes before cutting to achieve the required machining angle. The X, Y, and Z axes control linear movement, while the additional A, B, or C rotary axes adjust tool orientation or workpiece rotation. This enables better tool access, shorter setups, and more efficient machining of complex geometries.
A: The main difference between 5-axis and 3-axis machining is the number of controlled movements available during cutting. A 3-axis CNC machine moves along the X, Y, and Z axes, making it suitable for standard parts with flat surfaces, holes, and pockets. A 5-axis machine adds two rotary axes, allowing machining from multiple angles and improving efficiency for complex parts with advanced geometries.
A: The difference between simultaneous 5-axis and 3+2 machining is how the rotary axes move during the cutting process. Simultaneous 5-axis machining allows all five axes to move continuously together, making it ideal for complex contours, freeform surfaces, and highly detailed components. In 3+2 machining, the rotary axes position the part at a fixed angle before cutting, which is often more suitable for angled features and multi-sided machining.
A: 5-axis machining is suitable for complex precision parts that require multiple machining directions, curved surfaces, or difficult-to-reach features. Common applications include aerospace components, medical devices, automotive parts, semiconductor components, impellers, molds, and precision housings. By reducing setups and improving tool accessibility, 5-axis machining helps maintain accuracy while manufacturing complex geometries.
A：5-axis CNC machining can process a wide range of metals and engineering plastics, including aluminum, stainless steel, titanium, brass, copper, PEEK, and other machinable materials. Material selection depends on the required strength, weight, corrosion resistance, thermal performance, and application requirements. With proper tooling and process planning, 5-axis machining can produce precision components across industries such as aerospace, medical, automotive, and industrial equipment.
