Abstract
CNC milling is a widely used subtractive manufacturing method for producing precise parts from metal and plastic materials. By using computer-controlled cutting tools to remove material from a fixed workpiece, it can create flat surfaces, slots, pockets, holes, and complex contours with high repeatability. This guide explains the CNC milling process, common machine types, typical CNC milling materials, major applications, and the main advantages and limitations of this manufacturing method.
Quick Answer
CNC milling is a computer-controlled machining process that removes material from a solid workpiece with rotating cutting tools to produce precise shapes, surfaces, and detailed features.
Key Takeaways
- CNC milling is suitable for accurate and repeatable production of complex parts.
- The CNC milling process supports many operations, including facing, slotting, pocketing, drilling, and contouring.
- Common CNC machining materials include aluminum, steel, titanium, brass, copper, and engineering plastics.
- 3-axis, 4-axis, and 5 axis CNC machining systems provide different levels of flexibility and geometric capability.
- Precision CNC milling is widely used in aerospace, automotive, robotics, electronics, and medical manufacturing.
What Is CNC Milling?
CNC milling is a subtractive manufacturing process in which rotating cutting tools remove material from a fixed workpiece according to programmed digital instructions. The machine follows a predefined toolpath to create the final shape, allowing manufacturers to produce parts with tight tolerances, consistent dimensions, and good surface quality.
In practical manufacturing, CNC milling machining is often used for parts that include flat faces, pockets, slots, contours, cavities, and complex multi-surface features. Because the cutting motion is digitally controlled, the process can maintain strong repeatability from one part to the next, making it suitable for both prototypes and batch production.
CNC milling machining vs. manual milling
The main difference between manual milling and CNC milling machining is control. In manual milling, the operator moves the machine by hand. In CNC machining, the movement is guided by programmed coordinates, cutting parameters, and toolpath instructions. This improves precision, reduces variation between parts, and increases efficiency for repeated production.
For companies making technical components, this level of automation is especially useful when the part geometry is too complex for manual control or when stable part-to-part consistency is required.

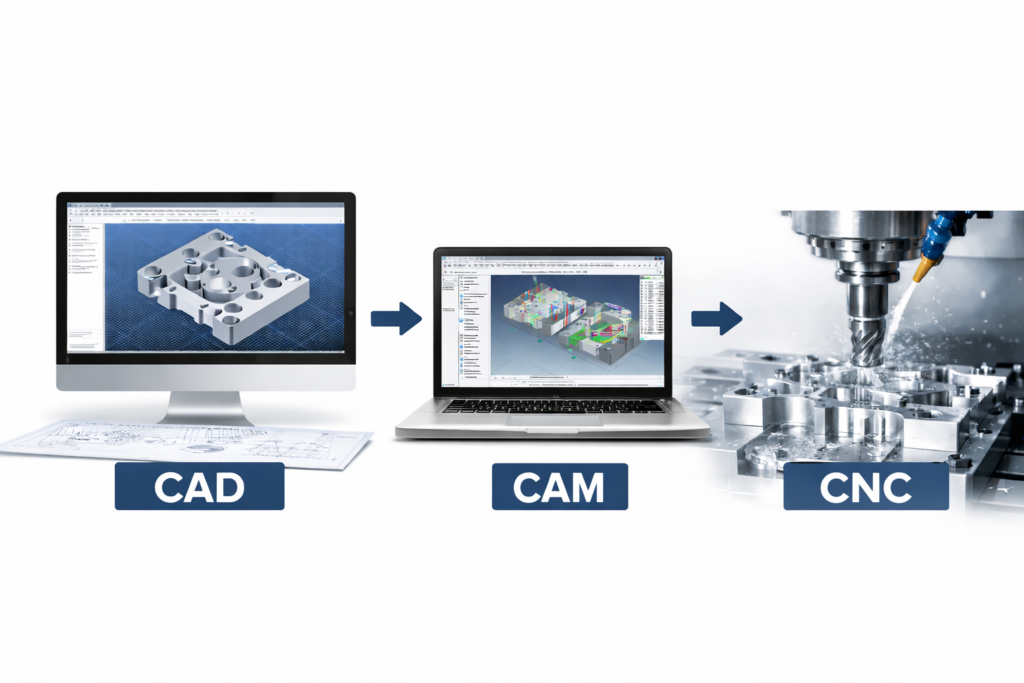

How Does the CNC Milling Process Work?
The CNC milling process begins with a digital design and ends with a machined component that matches the programmed geometry. Each stage plays a role in part quality, machining efficiency, and overall production cost.
A typical workflow includes:
- Designing the part in CAD software
- Generating toolpaths in CAM software
- Selecting cutting tools and machining parameters
- Preparing and clamping the raw material
- Running the machine program
- Inspecting the finished part
From CAD model to machining program
The first step is creating a 2D or 3D model of the part. That model is then transferred into CAM software, which converts the design into machine-readable instructions. These instructions define spindle speed, feed rate, depth of cut, tool movement, and operation sequence.
This digital workflow makes the CNC milling process highly reliable, especially for precision components where repeated dimensional accuracy is critical.
Common milling operations
A complete milling job may involve several operations, depending on the part design. Common operations include:
- Face milling for flat surfaces
- End milling for edges and profiles
- Slot milling for channels and grooves
- Pocket milling for recesses and cavities
- Drilling for holes
- Tapping for threaded holes
- Contour milling for complex surfaces
These operations allow precision CNC milling to handle both simple parts and highly detailed components with multiple features.

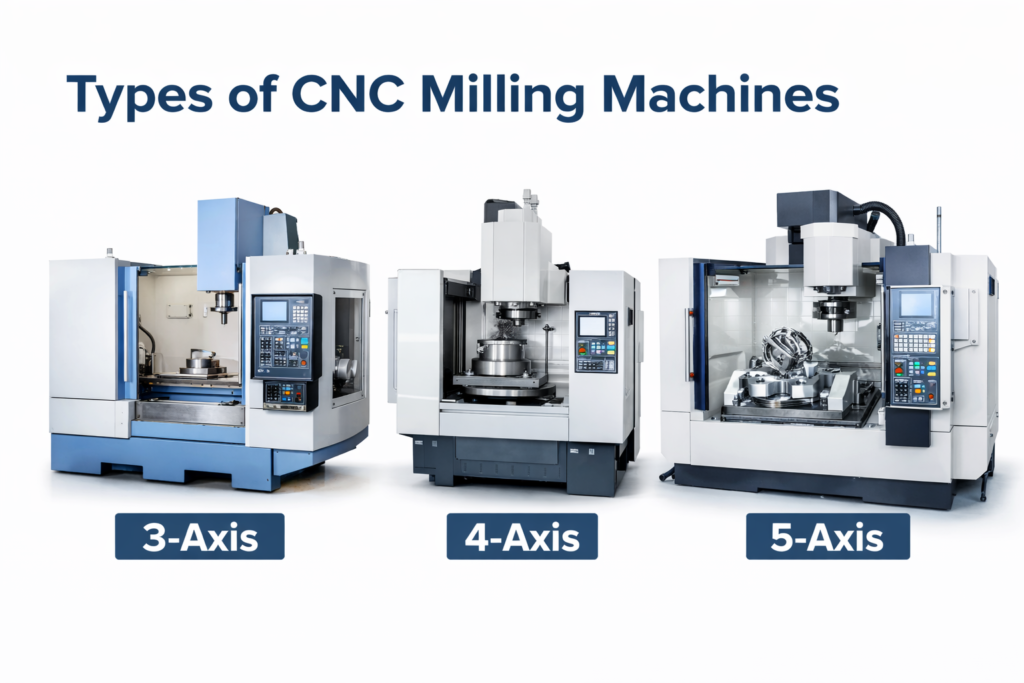

Types of CNC Milling Machines
Different milling machines are used depending on the complexity of the part, the number of surfaces to be machined, and the desired setup efficiency.
3-axis, 4-axis, and 5 axis CNC machining
3-axis CNC milling is the most common form of milling. The cutting tool moves along the X, Y, and Z axes, making it suitable for standard faces, pockets, holes, and profiles.
4-axis milling adds a rotational axis, allowing the part to be indexed for machining on multiple sides with fewer setups.
5 axis CNC machining offers the greatest flexibility. It allows the tool or part to move in more directions, making it easier to machine deep cavities, angled surfaces, and complex freeform geometries in one setup. This is especially valuable when part accuracy and setup reduction are both important.
| Machine Type | Best For | Main Benefit |
| 3-axis CNC milling | Basic and medium-complexity parts | Cost-effective and widely available |
| 4-axis milling | Multi-side parts | Fewer repositioning steps |
| 5 axis CNC machining | Complex geometries and contoured surfaces | Higher flexibility and fewer setups |
Vertical milling vs. horizontal milling
Vertical milling machines are commonly used for general machining work. They are suitable for a wide variety of parts and are often preferred for their accessibility and flexibility.
Horizontal milling machines are more suitable for heavy cutting, larger parts, and efficient chip removal. They are often used when production efficiency and higher material removal rates are priorities.

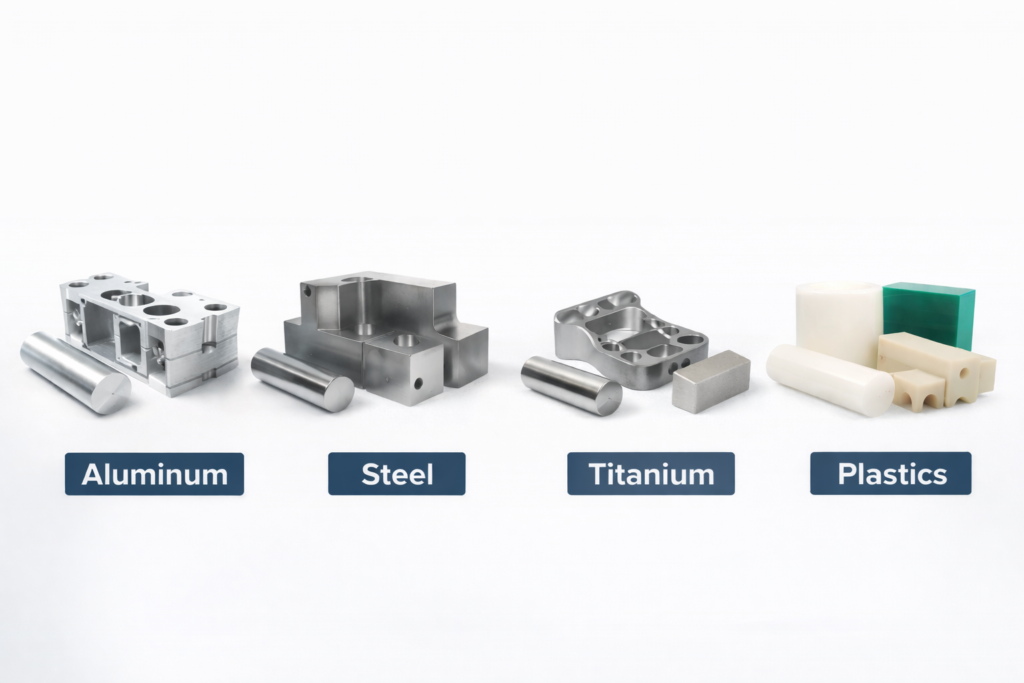

Common CNC Milling Materials
One of the main strengths of milling is its compatibility with a broad range of CNC machining materials. Material choice affects machinability, part strength, corrosion resistance, weight, and final cost.
Metals used in milling
The most common metal CNC milling materials include:
| Material | Main Characteristics | Typical Uses |
| Aluminum | Lightweight, easy to machine, good strength-to-weight ratio | Housings, brackets, covers |
| Stainless steel | Strong, corrosion-resistant, durable | Medical parts, industrial fittings |
| Titanium | High strength, low weight, heat resistant | Aerospace, medical, performance components |
| Brass/Copper | Good conductivity and machinability | Electrical parts, fittings, connectors |
Aluminium CNC milling is especially popular for lightweight structural parts, enclosures, consumer products, and electronic housings. It combines good machinability with efficient production speed.
Titanium machining is often selected when high strength, corrosion resistance, and reduced weight are required. Because titanium is more difficult to cut than aluminum, it typically requires carefully controlled tooling, feeds, speeds, and cooling conditions.
Plastics used in milling
Besides metals, many engineering plastics are also suitable CNC milling materials. These include ABS, POM, PTFE, nylon, acrylic, and other performance polymers. Plastic milling is often used for fixtures, covers, insulators, prototypes, and lightweight functional parts.
Compared with molded parts, milled plastic parts are often chosen when lower quantities, design flexibility, or faster customization is needed.
